Regular price $17,595.00 $16,495.00 Sale

Shipping cost is calculated in your cart
Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys CV ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration for Light Duty 1-3 Class Vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.


1 Year Warranty

This tool is covered by our no-hassle Ironclad 1 Year Warranty

Description

[description] Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys CV ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration for Light Duty 1-3 Class Vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

[/description]
Description
Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys CV ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration for Light Duty 1-3 Class Vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys CV ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration for Light Duty 1-3 Class Vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

      [/description]

      Features

      • Perform ADAS Lane Departure Warning Calibrations on Light Duty, Class 1-3 Vehicles
      • Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame

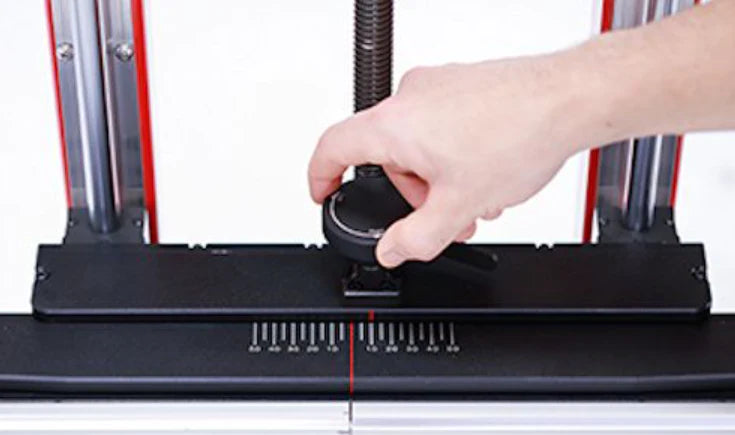

      • Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
      • Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

      Hardware Features

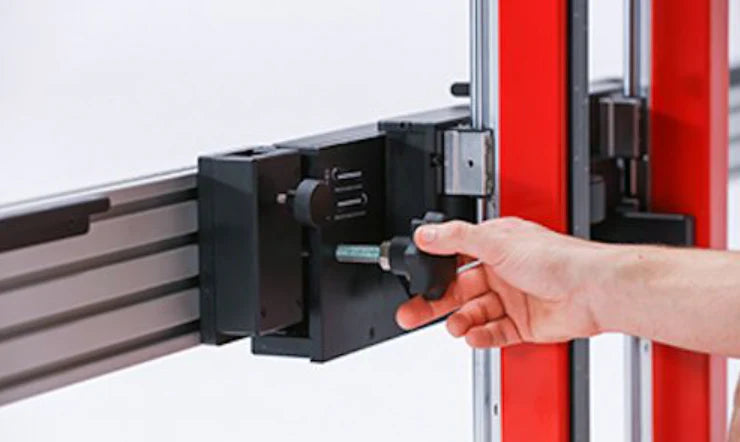

      • Precise millimeter-level accuracy: crossbar's minor adjustment knob and laser positioning
      • Precise laser on sliding plate to locate radar and front camera

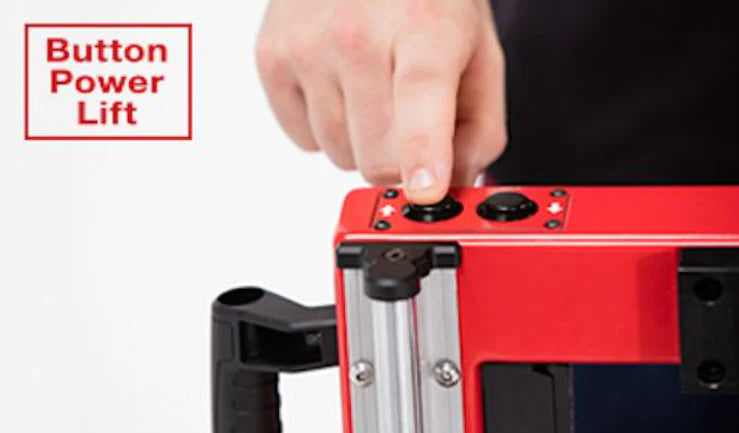

      • Flexible power adjustable lift
      • Flexible portable and easy for storage patter cloth and pattern board
      • Integrated modular frame assembled with accessory tools for calibration
      • Integrated easy to move pattern board holder, pattern cloth, and pattern board

      Software Features

      • Smart calibration procedure
      • Smart compatible use with leveling lift adjustment
      • Accurate regular updates of lates OE-level diagnostic and calibration software
      • Accurate correct calibration
      • Intuitive tutorial graphics and step-by-step instructions
      • Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
      • Complete wide vehicle coverage
      • Complete (7) calibration functions fixed and mobile calibrations

      MaxiSys 909CV Tablet Features

      • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
      • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
      • Automatic system and software updates with real-time push message notifications via internet
      • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
      • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
      • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

      Specifications

      • Shipping Dimensions: 60" H x 105" L x 42" W
      • Shipping Weight: 555 lbs.

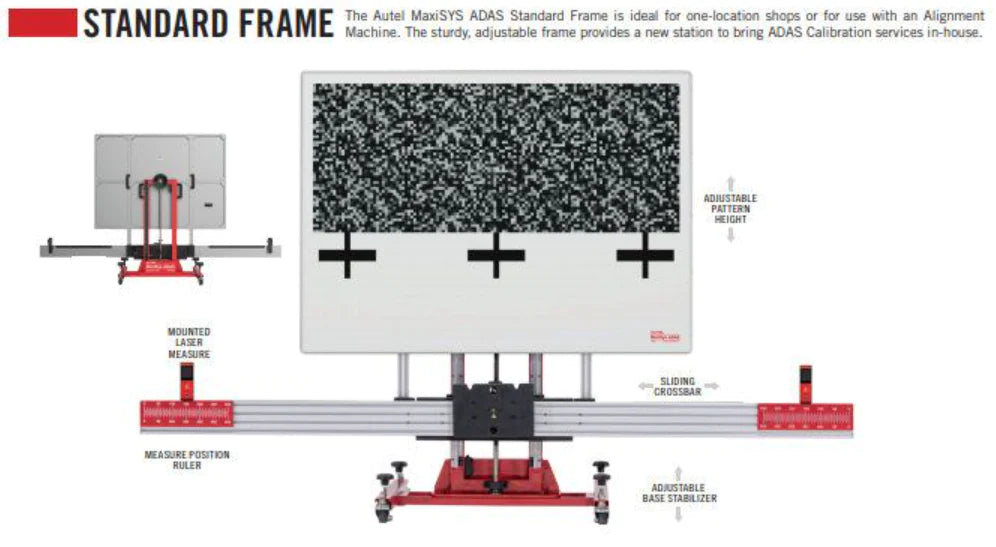

      Frame & Pattern Board Specifications

      • Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
      • Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
      • Calibration Frame Weight GW: 152kg (335.1 lb.)
      • Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
      • Crossbar Length: 2510mm (98.82")
      • Measurement Range of Crossbar's Height Min: 350mm (13.78")
      • Measurement Range of Crossbar's Height Max: 950mm (37.40")
      • Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
      • Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
      • Rated Power: 24V, 3A
      • Laser Rated Power: 3V, 25mA
      • Laser Battery Type: AA 2x1.5V
      • Calibration Frame Working Temp: 0? to 50?
      • Calibration Frame Storage Temp: -20? to 60°C
      • Laser Class: Class 2
      • Certification: CE, FCC, RoHS

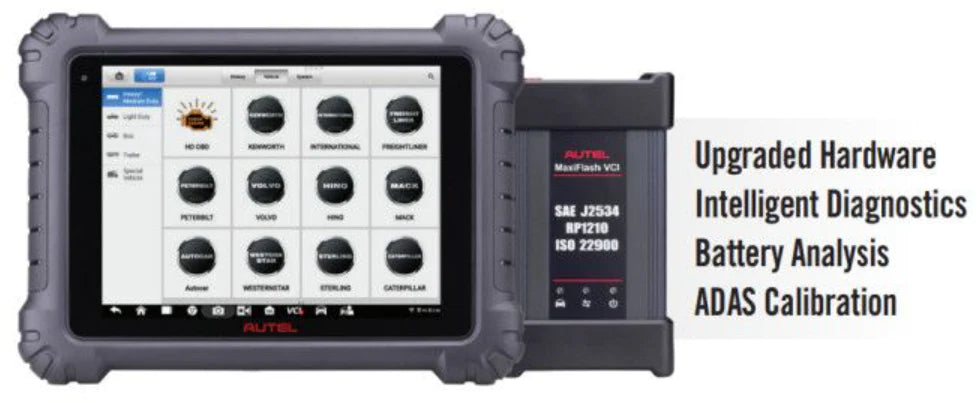

      MaxiSys MS909CV Tablet Specifications

      • Operating System: Android 7.0
      • Processor: Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
      • Memory: 4GB RAM & 128GB On-board Memory
      • Display: 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
      • Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
      • Connectivity: BT v.2.1 + EDR
      • Connectivity: GPS
      • Connectivity: USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
      • Connectivity: HDMI 2.0
      • Connectivity: SD Card (Support up to 256GB)
      • Camera (Rear): 16 Megapixel, Autofocus with Flashlight
      • Camera (Front): 5.0 Megapixel
      • Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
      • Audio Input/Output: Microphone
      • Audio Input/Output: Dual Speakers
      • Audio Input/Output: 3-Band 3.5 mm stereo/standard headset jack
      • Power and Battery: 15000mAH 3.8V lithium-polymer battery
      • Power and Battery: Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
      • Input Voltage: 12V/3A Adapter
      • Operating Temperature: 0 to 50°C (32 to 122°F)
      • Storage Temperature: -20 to 60°C (-4 to 140°F)
      • Dimensions (W x H x D): 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
      • Weight: 1.66kg (3.66 lb.)
      • Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
