VANISH Windshield Repair Kit Group Shot
sku: VANISH

VANISH™ Professional Windshield Repair Kit
Free Gift

Regular price $1,195.00 Sale

The Future of Windshield Repair
Boasting the patented DarkCure™ sub 15-second fully integrated UV curing system, patent-pending SpeedLock™ multi-position injector, OneTouch™ Air Release Valve, and industry-leading vacuum/pressure capacity, the VANISH™ windshield repair system represents a quantum leap forward in repair technology.

NEW - Sub-15 Second DarkCure™ Extreme UV LED Curing System
After 10 years shrouded in top-secret development, GT Tools® is releasing the DarkCure™ Technology platform into the world. A radical breakthrough in the windshield repair industry; Ultra-High Intensity, Short Duration UV LED curing penetrates deeply into any repair from all sides, cutting cure times by 90% and improving cure strength even after the system is turned off!

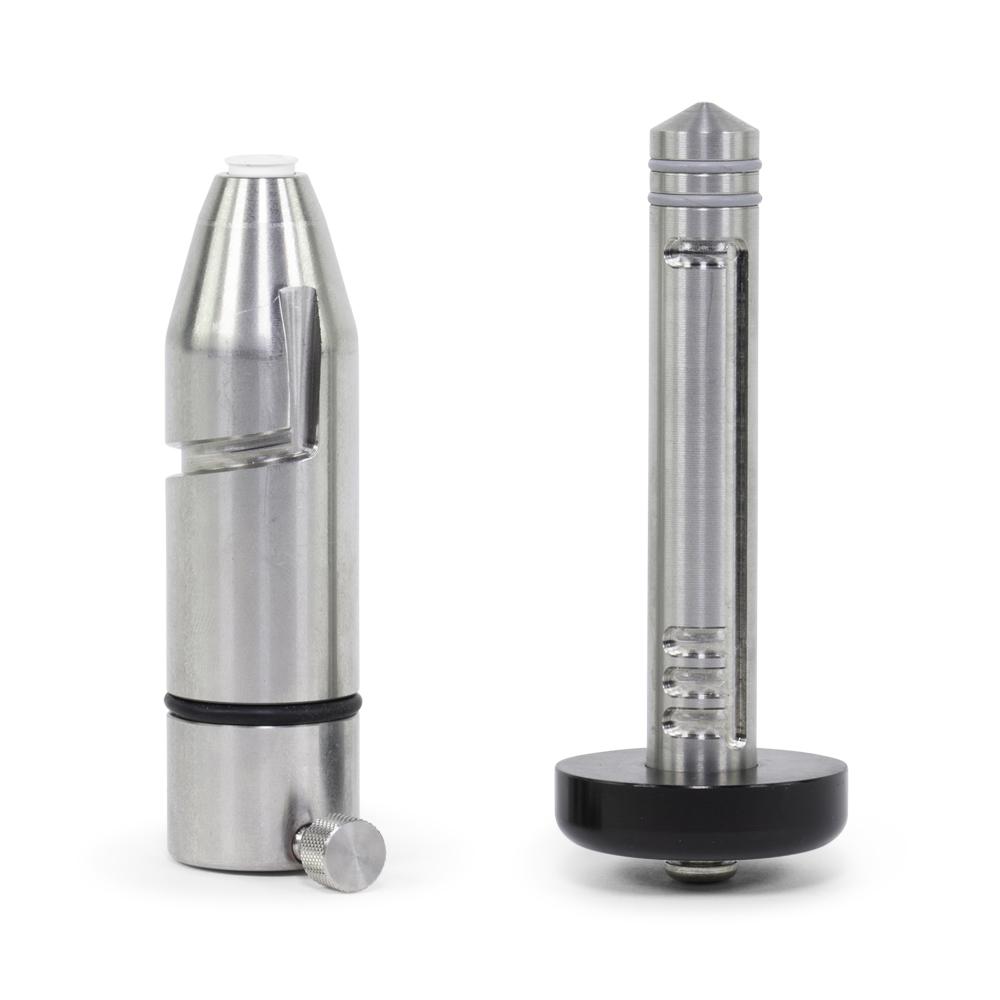

Stainless Steel Injector Components
Backed by a limited lifetime warranty, the VANISH™ injectors are precision machined using 303 stainless steel materials that are designed to provide decades of reliability.

SpeedLock™ Injector Technology and OneTouch™ Air Release Valve
Utilizing a multi-position locking injector, SpeedLock™ allows for a simple and easy transition between Vacuum and Pressure. Produce consistent, professional, high-quality repairs every time. Simply push the OneTouch™ Air Release button to instantly release air when transitioning between vacuum and pressure.

Helios™ Positioning System
Gone are the days of threading your injector into the bridge. Just slide the injector into the bridge and give it a half turn to seal it to the glass.

GT Tools™ VANISH™
Welcome to the Future of Windshield Repair; GT Tools® is proud to introduce the VANISH™ Windshield Repair System. Patented, Patent-Pending and Made in the USA.

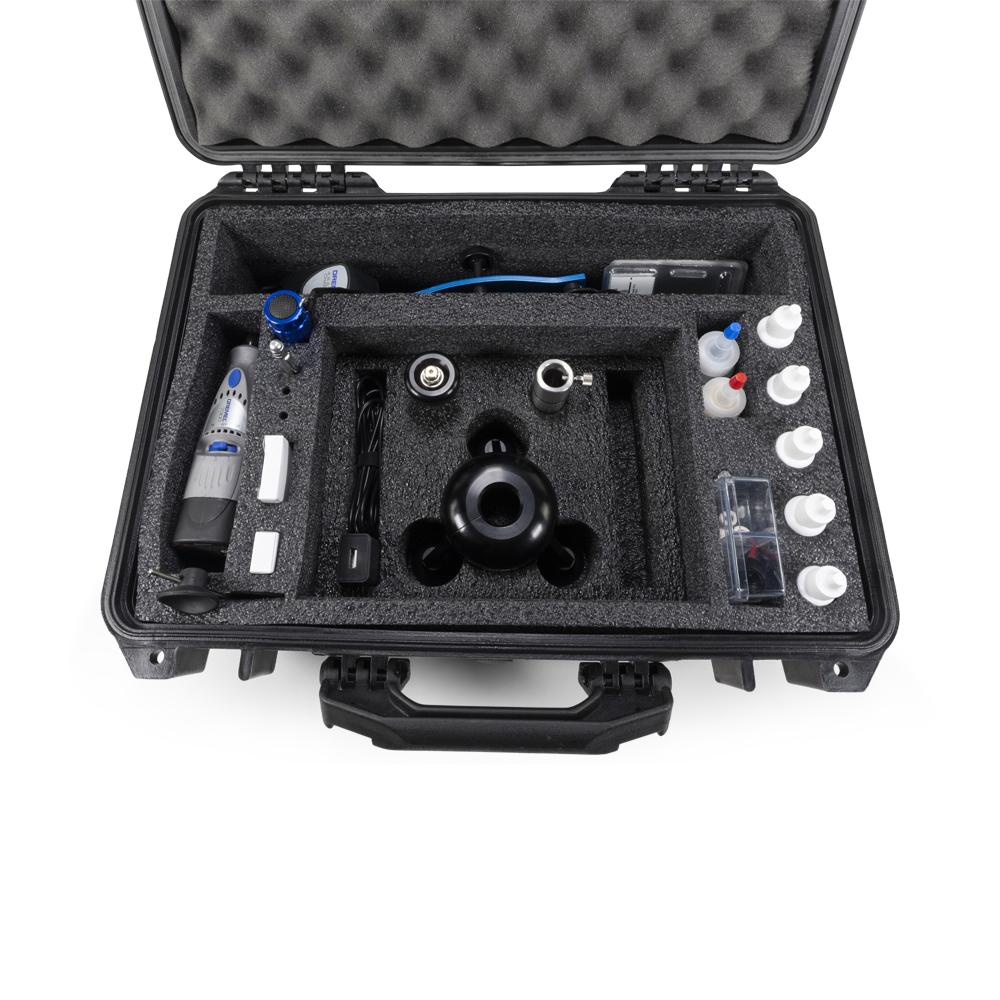

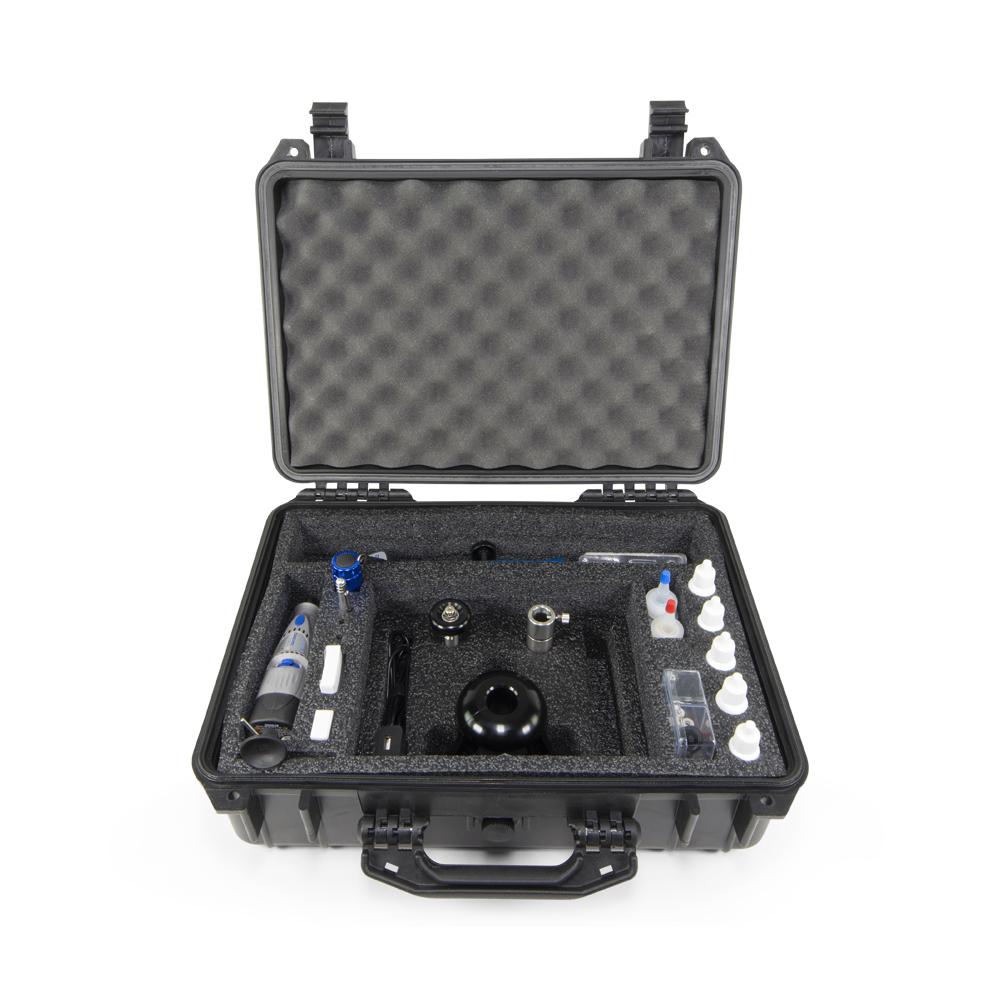

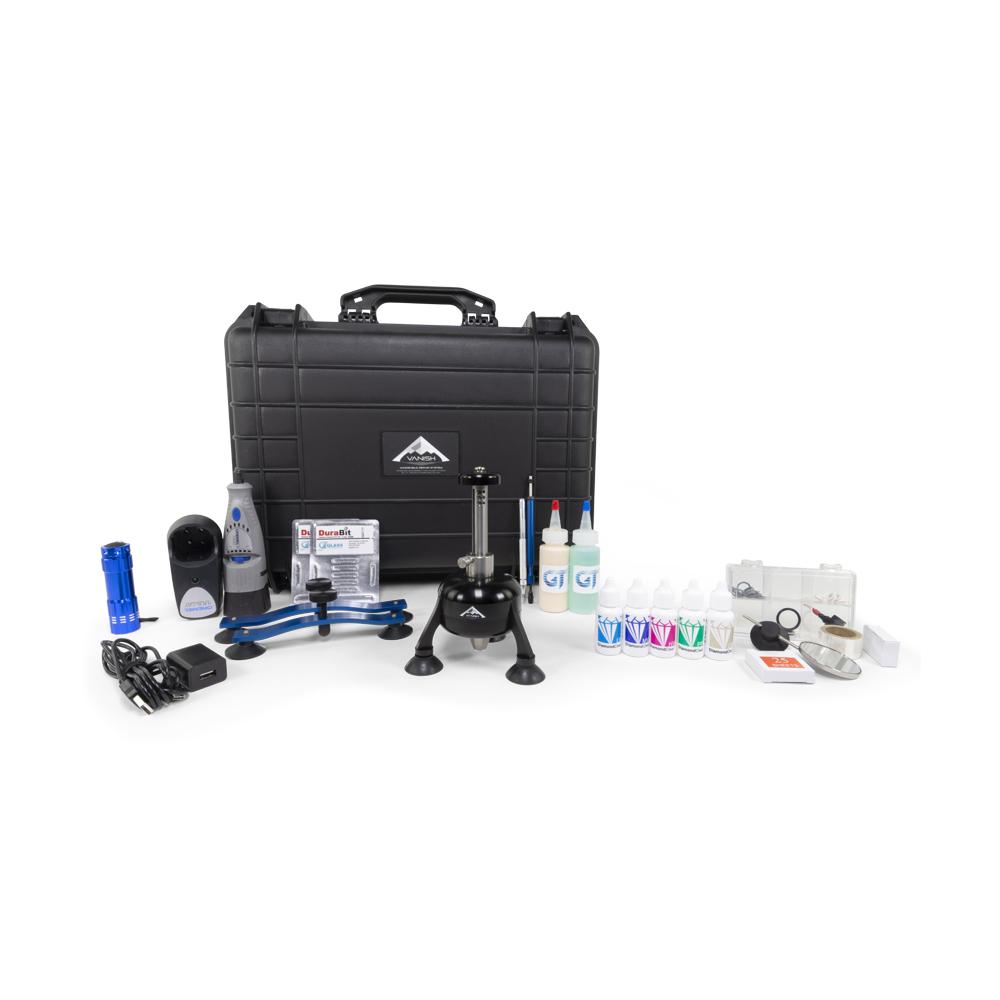

Kit Includes:

1 TCS-SM Small Tech Case
1 CFOAM-VANISH VANISH Small Tech Case Foam

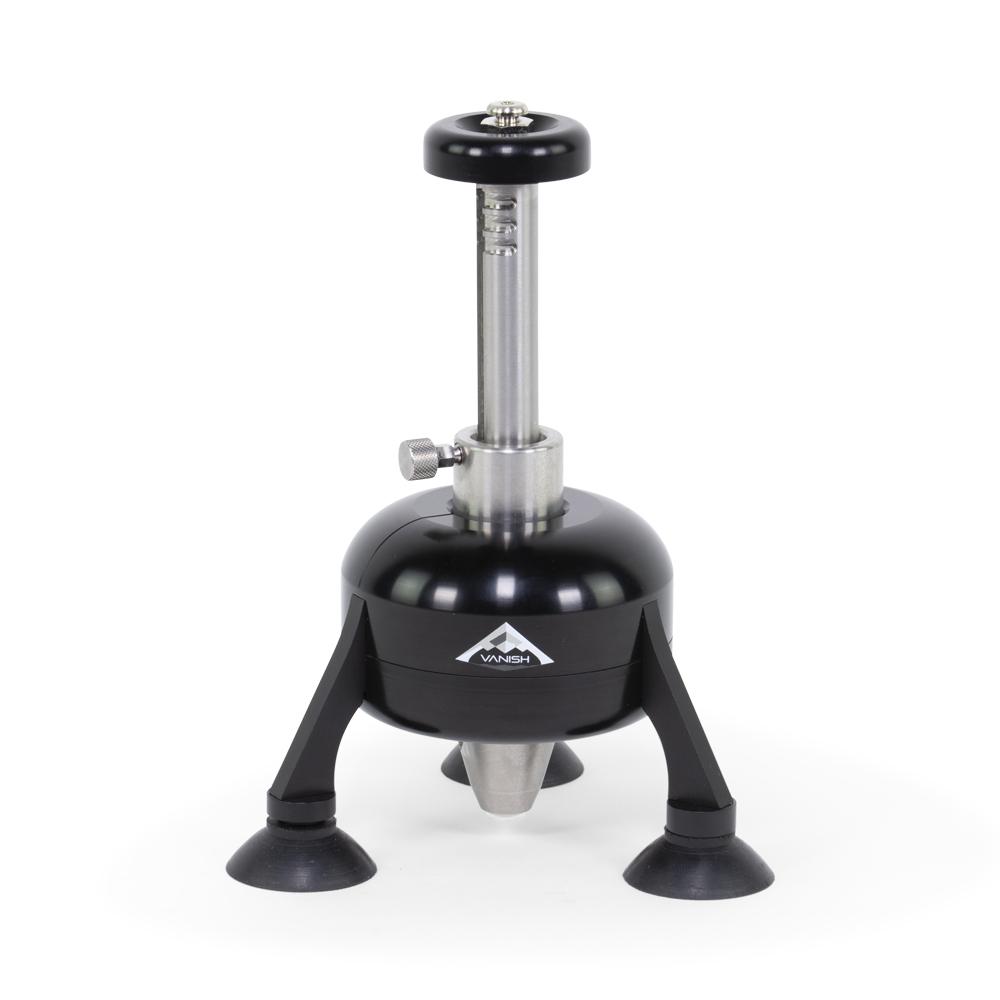

1 VBRG VANISH Bridge Assembly
1 VIA VANISH Injector Assembly
1 CDRL Cordless Drill with Charger
1 PRB Carbide Probe
1 RZR Razor Blades 10pk

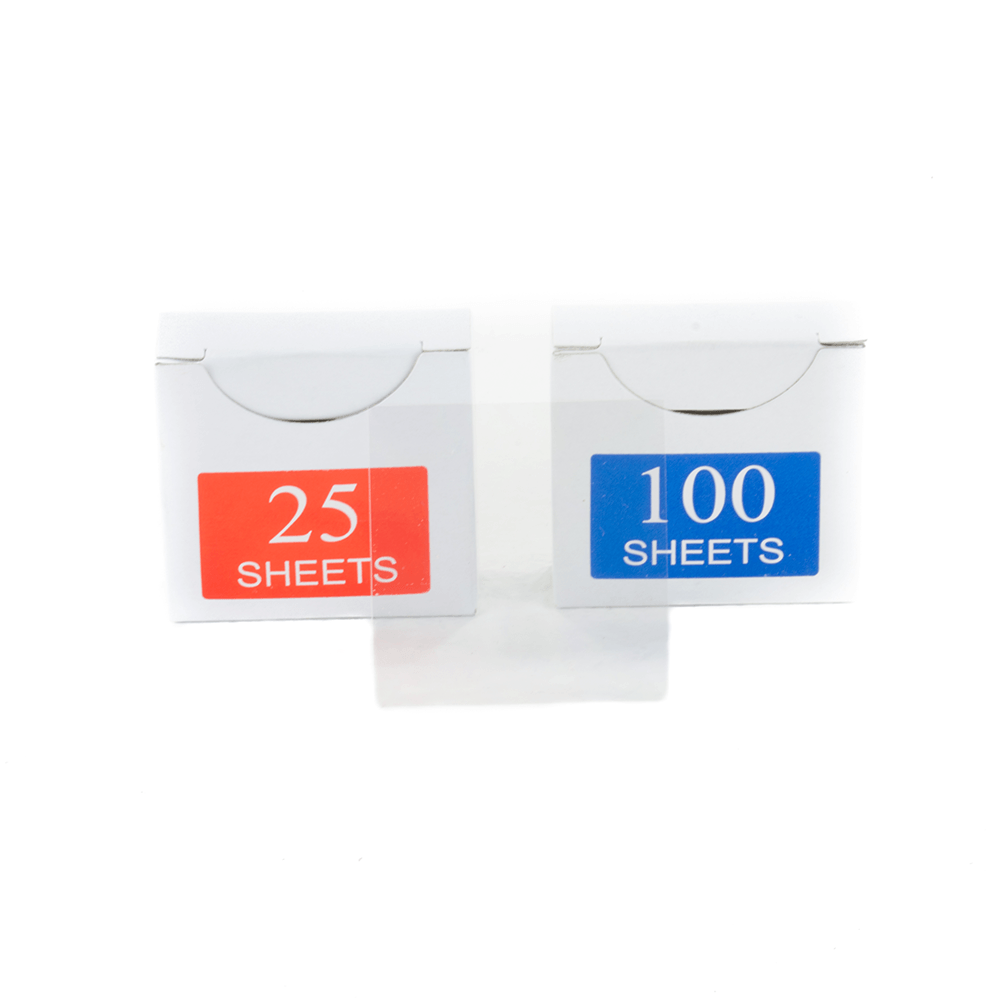

1 PITSQ Pit Squares 25 Pack
1 SCL Suction Cup Lube
1 PITG Pit Gloss
1 PITT Pit Tape
2 CJ Crack Jacks
1 NC Needle Cap
1 FP Fender Protector
2 DBM Medium Drill Bits 5 Pack
1 MIR-2 Magnifying Mirror 2 Inch
1 BULL Bullseye Making Tool
1 SH Slide Hammer
1 PL Pen Light
1 SKB Seal Box
1 VIS VANISH Injector Seals 5 Pack
1 VPS VANISH Plunger Seals 10 Pack
1 VUSB VANISH USB-C Charging Cable
1 VCHGR VANISH 8.4v USB Wall Charger
1 RLVAF-15 Low Viscosity Resin 15cc
1 RMVAF-15 Medium Viscosity Resin 15cc
1 RHVAF-15 High Viscosity Resin 15cc
1 RCRAF-15 Long Crack Repair Resin 15cc
1 RPF-15 High Viscosity Pit Filler 15cc
1 MANUAL Instruction Manual/ Training Link/ Catalog

VANISH™ Windshield Repair Product Video

VANISH™ Windshield Repair Features & Demo Video

VANISH™ Technical Brochures (1.9 MB)

VANISH™ Technical Brochure

DarkCure™ Technology Technical Brochures (2.1 MB)

DarkCure™ Technical Brochure

Tool Training Manual
  • 1 Examine the break & prep the glass. Ideal glass temp should be 35oF to 85oF. Test break stability by applying small amount of pressure with probe around the break.

  • Step 2 Clean loose debris with probe point. If impact point can’t be felt, drill to create an opening. Many breaks will not need to be drilled. Attach mirror to inside of glass.

  • Step 3 Place the Vanish Bridge on the glass, pressing down until suction cups are fully depressed, centering over the break.

  • Step 4 Insert Injector body into bridge, lining up SpeedLock knob with line on bridge. Give injector body a quarter turn to seat seal.

  • Step 5 Use mirror to adjust horizontal alignment, moving the bridge to ensure a good seal on the break.

  • Step 6 Apply HV resin to the Grey Plunger Seals at base of plunger to lubricate.

  • Step 7 Apply 5 drops of Diamond Clear™ Resin into the injector body. Check GT Tools® Catalog for proper resin choice.

  • Step 8 If outdoors, place a UV Sunshade (GT Tools® Part# SS) over the Repair Area.

  • Step 9 Pull the Silver Release Pin knob on the side of the injector body and insert the plunger into the injector body. Release the pin, twisting until the pin slips into the plunger groove.

  • Step 10 Vaccum Cycle: Depress OneTouch Button, Bottom out plunger, slowly pull plunger up and twist to lock in vacuum. Wait 1 Minute.

  • Step 11 Pressure Cycle: Depress OneTouch Button, twist plunger, depress until there is fair resistance, twist plunger to lock into desired pressure slot. Wait 2 Minutes.

  • Step 12 Alternate between cycles of step 10 (Vacuum: 1 min) and Step 11 (Pressure: 2 min) until break is completely filled.

  • Step 13 During Final Pressure Cycle: Press Power Button on side of Vanish Bridge to turn on for curing cycle. Wait 15 seconds for cure to finish.

  • Step 14 Depress OneTouch Button, Remove Injector Body from Bridge, Apply small bead of PF above the pit on glass.

  • Step 15 Press Power Botton on Vanish Bridge to cure the pit for final curing

  • Step 16 Remove Bridge & Pit Square. Scrape clean razor blade (held perpendicular to glass) vigorously back & forth until only a small circle of pit filler remains.

  • Step 17 Apply small bead of Pit Gloss to the pit. Polish with paper towel or cork until glossy finish achieved.

  • Step 18 Clean the glass. Clean ALL injector components with isopropyl alcohol at the end of each day. DONE!

  • Step 19 Charging your Vanish: Plug in the Vanish Charger & USB Cord to the wall, locate the charging port on the side of the vanish bridge and plug in the included USB-C Cable to the charging port. Full charge in roughly 2 hours. NOTE: Only use included charger with Vanish System

  • Shipping: All orders will be processed and shipped within 1 or 2 business days upon payment not including weekends and based on the UPS delivery service requested.
  • You will receive an email confirmation with tracking information as soon as your order is processed and shipped.
  • All orders placed within the United States of America will ship by UPS services allotted on gtglass.com.
  • All orders shipping to international addresses will ship via UPS International Economy. All international orders outside the United States of America are subject to customs, duty taxes, and brokerage fees if applicable.
  • Returns: All Sales are Final. Returns and exchanges are accepted only if: 1) The wrong product was sent. 2) Any or all of your products were damaged in transit by the shipping carrier. or 3) A warrantied item is factory defective. See Terms of Service Link below for more details.
  • Warranty:  Warranty is extended to hand tools and power tools. All disposable and consumable supply items are not subject to warranty coverage. Each hand and power tool is warrantied to be free of defects from workmanship and materials for the period of 1 year from the date of original purchase.



GT Tools™ VANISH™
Welcome to the Future of Windshield Repair; GT Tools® is proud to introduce the VANISH™ Windshield Repair System. Patented, Patent-Pending and Made in the USA.

Kit Includes:

1 TCS-SM Small Tech Case
1 CFOAM-VANISH VANISH Small Tech Case Foam
1 VBRG VANISH Bridge Assembly
1 VIA VANISH Injector Assembly
1 CDRL Cordless Drill with Charger
1 PRB Carbide Probe
1 RZR Razor Blades 10pk
1 PITSQ Pit Squares 25 Pack
1 SCL Suction Cup Lube
1 PITG Pit Gloss
1 PITT Pit Tape
2 CJ Crack Jacks
1 NC Needle Cap
1 FP Fender Protector
2 DBM Medium Drill Bits 5 Pack
1 MIR-2 Magnifying Mirror 2 Inch
1 BULL Bullseye Making Tool
1 SH Slide Hammer
1 PL Pen Light
1 SKB Seal Box
1 VIS VANISH Injector Seals 5 Pack
1 VPS VANISH Plunger Seals 10 Pack
1 VUSB VANISH USB-C Charging Cable
1 VCHGR VANISH 8.4v USB Wall Charger
1 RLVAF-15 Low Viscosity Resin 15cc
1 RMVAF-15 Medium Viscosity Resin 15cc
1 RHVAF-15 High Viscosity Resin 15cc
1 RCRAF-15 Long Crack Repair Resin 15cc
1 RPF-15 High Viscosity Pit Filler 15cc
1 MANUAL Instruction Manual/ Training Link/ Catalog

VANISH™ Windshield Repair Product Video

VANISH™ Windshield Repair Features & Demo Video

VANISH™ Technical Brochures (1.9 MB)

VANISH™ Technical Brochure

DarkCure™ Technology Technical Brochures (2.1 MB)

DarkCure™ Technical Brochure

Tool Training Manual
  • 1 Examine the break & prep the glass. Ideal glass temp should be 35oF to 85oF. Test break stability by applying small amount of pressure with probe around the break.

  • Step 2 Clean loose debris with probe point. If impact point can’t be felt, drill to create an opening. Many breaks will not need to be drilled. Attach mirror to inside of glass.

  • Step 3 Place the Vanish Bridge on the glass, pressing down until suction cups are fully depressed, centering over the break.

  • Step 4 Insert Injector body into bridge, lining up SpeedLock knob with line on bridge. Give injector body a quarter turn to seat seal.

  • Step 5 Use mirror to adjust horizontal alignment, moving the bridge to ensure a good seal on the break.

  • Step 6 Apply HV resin to the Grey Plunger Seals at base of plunger to lubricate.

  • Step 7 Apply 5 drops of Diamond Clear™ Resin into the injector body. Check GT Tools® Catalog for proper resin choice.

  • Step 8 If outdoors, place a UV Sunshade (GT Tools® Part# SS) over the Repair Area.

  • Step 9 Pull the Silver Release Pin knob on the side of the injector body and insert the plunger into the injector body. Release the pin, twisting until the pin slips into the plunger groove.

  • Step 10 Vaccum Cycle: Depress OneTouch Button, Bottom out plunger, slowly pull plunger up and twist to lock in vacuum. Wait 1 Minute.

  • Step 11 Pressure Cycle: Depress OneTouch Button, twist plunger, depress until there is fair resistance, twist plunger to lock into desired pressure slot. Wait 2 Minutes.

  • Step 12 Alternate between cycles of step 10 (Vacuum: 1 min) and Step 11 (Pressure: 2 min) until break is completely filled.

  • Step 13 During Final Pressure Cycle: Press Power Button on side of Vanish Bridge to turn on for curing cycle. Wait 15 seconds for cure to finish.

  • Step 14 Depress OneTouch Button, Remove Injector Body from Bridge, Apply small bead of PF above the pit on glass.

  • Step 15 Press Power Botton on Vanish Bridge to cure the pit for final curing

  • Step 16 Remove Bridge & Pit Square. Scrape clean razor blade (held perpendicular to glass) vigorously back & forth until only a small circle of pit filler remains.

  • Step 17 Apply small bead of Pit Gloss to the pit. Polish with paper towel or cork until glossy finish achieved.

  • Step 18 Clean the glass. Clean ALL injector components with isopropyl alcohol at the end of each day. DONE!

  • Step 19 Charging your Vanish: Plug in the Vanish Charger & USB Cord to the wall, locate the charging port on the side of the vanish bridge and plug in the included USB-C Cable to the charging port. Full charge in roughly 2 hours. NOTE: Only use included charger with Vanish System

  • Shipping: All orders will be processed and shipped within 1 or 2 business days upon payment not including weekends and based on the UPS delivery service requested.
  • You will receive an email confirmation with tracking information as soon as your order is processed and shipped.
  • All orders placed within the United States of America will ship by UPS services allotted on gtglass.com.
  • All orders shipping to international addresses will ship via UPS International Economy. All international orders outside the United States of America are subject to customs, duty taxes, and brokerage fees if applicable.
  • Returns: All Sales are Final. Returns and exchanges are accepted only if: 1) The wrong product was sent. 2) Any or all of your products were damaged in transit by the shipping carrier. or 3) A warrantied item is factory defective. See Terms of Service Link below for more details.
  • Warranty:  Warranty is extended to hand tools and power tools. All disposable and consumable supply items are not subject to warranty coverage. Each hand and power tool is warrantied to be free of defects from workmanship and materials for the period of 1 year from the date of original purchase.




QUESTIONS & ANSWERS

Ask a Question
  • how well does this work for "vertical" (bus/truck) windshields? Would it need an adapter to achieve high quality repairs? I have a hard time "filling" the cracks with my spectrum on these types of windshields.

    Hey Jeff, I would get the Corner/Edge adapter for those vertical bus/truck windshields. This add-on will really allow you to kick that injector up at an angle to get those vertical windshields. Plus, the end-seal on the vanish is much more flexible than the spectrum, adding to your ability to do repairs at an angle. Here is th elink for the corner/edge adapter. https://www.gtglass.com/products/vanish-corner-edge-adapter

  • What is the vacuum of the Vanish compare to the Spectrum?

    The Vanish can achieve vacuum around 24 inHg. The Spectrum is around 16 inHg.

  • How do you do edges and corners with this thing?

    Hey Brian, great question. The Vanish will have a separate edge/corner adapter for this exact purpose. This will ship for free with any Vanish purchases through June 30th, 2019 and will cost an additional $120 after that date.

    Best,
    GT Tools Team

  • What makes this better than my pro vac zoom

    Hey Thomas, great question. The most significant improvement over the Zoom and any other tools available on the market is our DarkCure technology. Patented, Fully integrated Sub 15-second curing that is so intense that you don't need a pit square. 150-200 repairs between charges via an internal rechargable lithium ion battery pack. The vacuum capabilities are on par with the zoom (both can achieve approximately 10% less vacuum than our vacuum pump-driven automatic Maxim system) and the pressure capabilities of the Vanish exceed every manual system currently on the market. Our speedlock plunger makes it super simple to lock in pressure and vacuum stages and it features our OneTouch air release valve to equalize air in the system between Vacuum and pressure cycles. Both tools feature a tripod design self-leveling bridge, but what we've done with the Vanish is incorporate the helios quarter turn adjusting system. Insert the injector in the bridge and give it a quarter turn to seal on the glass every time. We have a 4-year warranty on any electronic components in the Vanish Bridge and all injector components have a lifetime warranty. Feel free to give me a call at 970-247-9374 if you have any more specific questions.

    Best,
    PC Lauinger
    GT Tools
