Autel IA1000AST MaxiSYS ADAS IA1000 Automated Alignment and "All Systems" ADAS System with MS ULTRA2 and Physical Targets
Autel IA1000AST MaxiSYS ADAS IA1000 Automated Alignment and "All Systems" ADAS System with MS ULTRA2 and Physical Targets
Autel IA1000AST MaxiSYS ADAS IA1000 Automated Alignment and "All Systems" ADAS System with MS ULTRA2 and Physical Targets
Autel IA1000AST MaxiSYS ADAS IA1000 Automated Alignment and "All Systems" ADAS System with MS ULTRA2 and Physical Targets
Frequently bought together
How it works
Product features

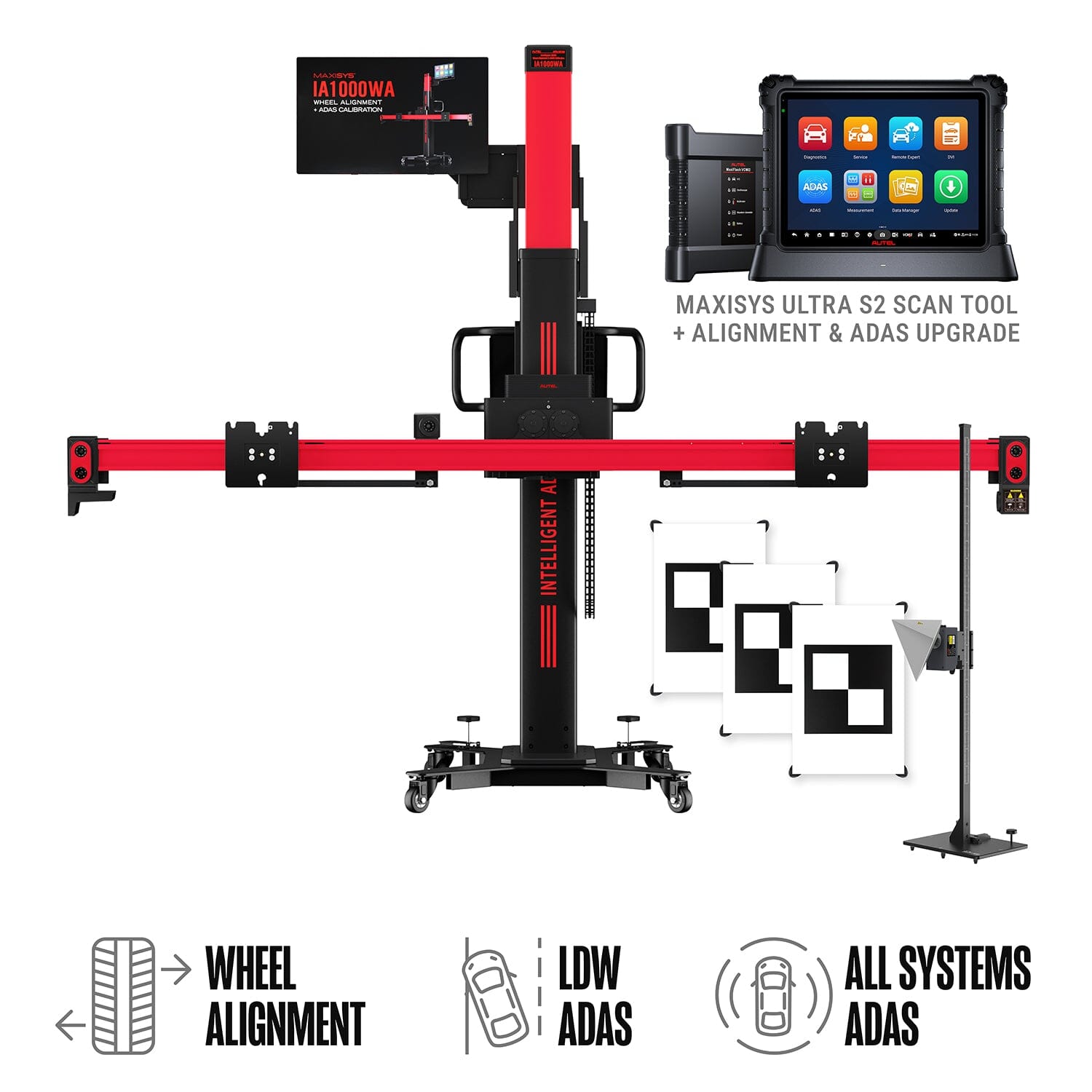

"ALL SYSTEMS" CALIBRATION PACKAGE
Go beyond LDW with calibration hardware for camera, radar, lidar, night vision, around-view monitoring, blind spot detection, and rear collision warning systems on equipped vehicles.

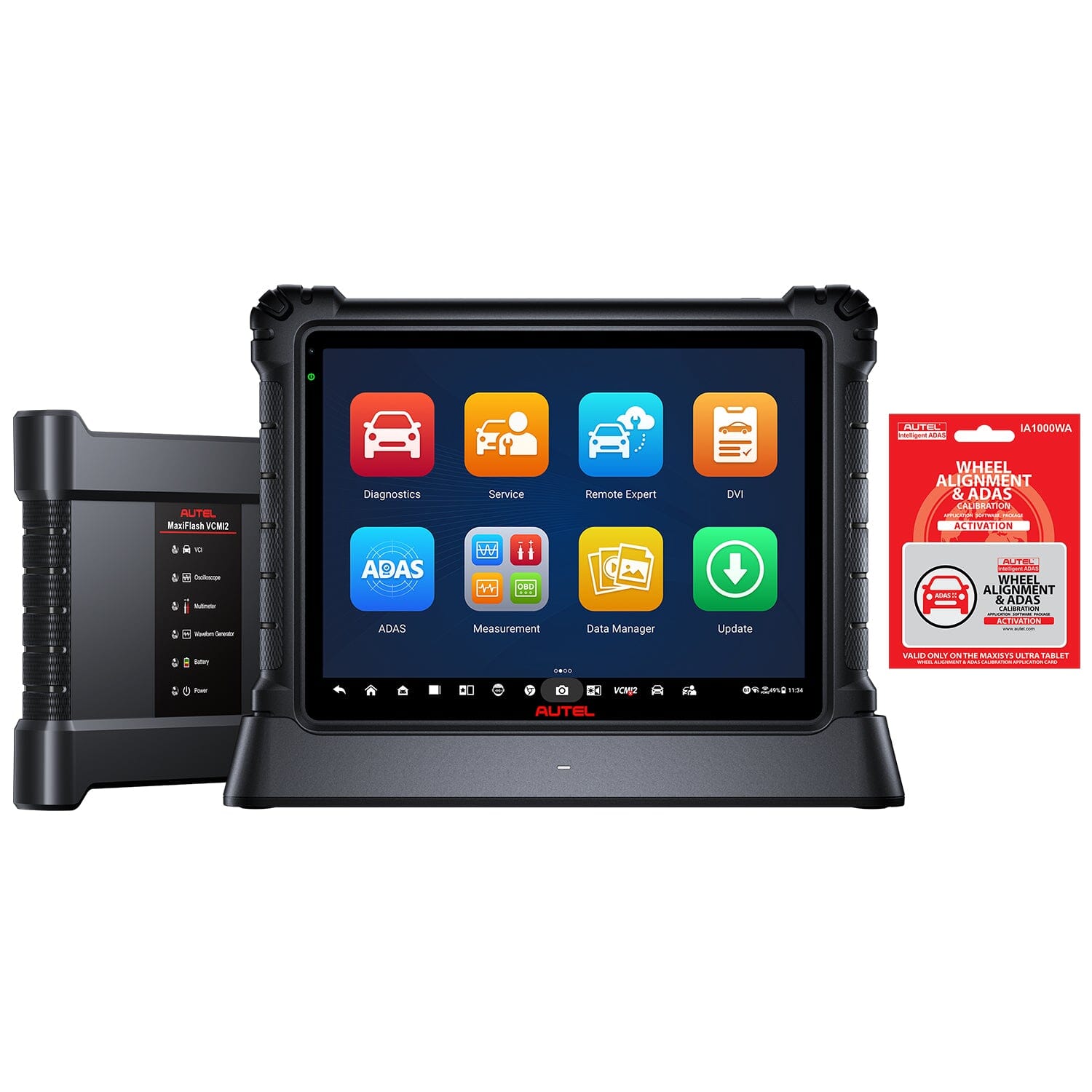

TABLET INCLUDED
Autel® Diagnostic Tablet with ADAS software included with the package!

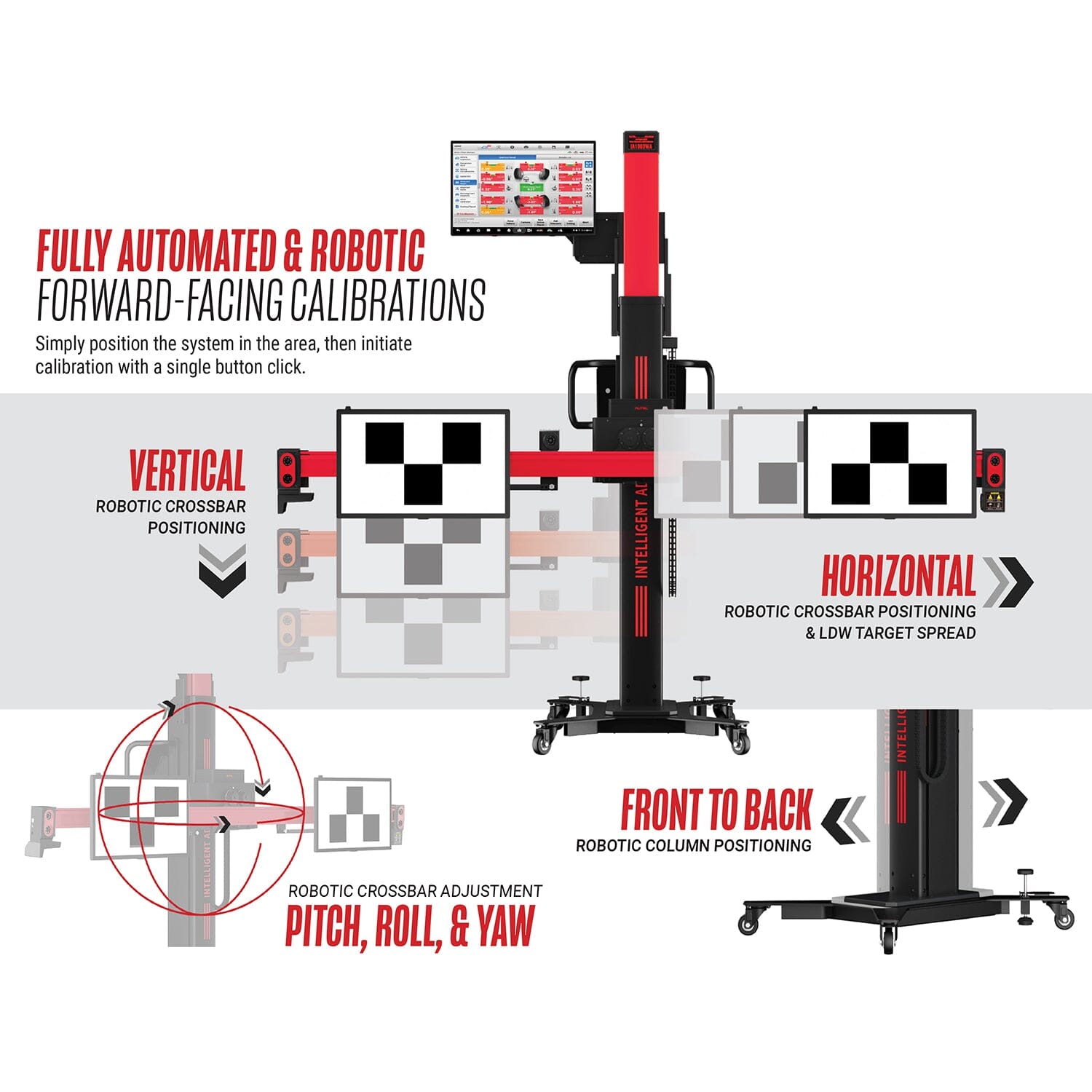

ROBOTIC FRAME MOVEMENT
Automated frame positioning streamlines setup, improves repeatability, and reduces technician time spent positioning calibration equipment.
.02° OPTICAL POSITIONING ACCURACY

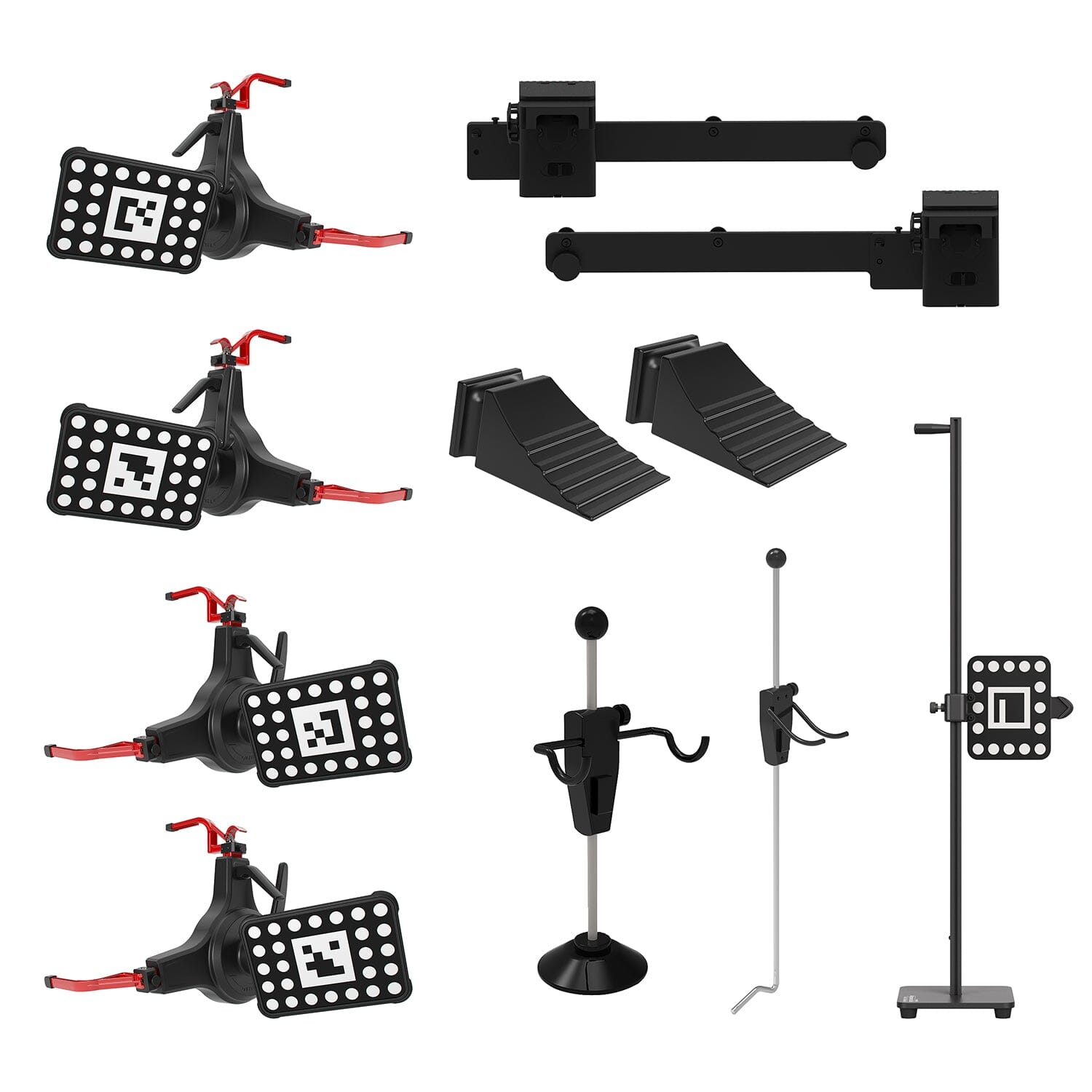

Six high-definition cameras work with precision wheel-clamp targets to map vehicle and frame position with Autel-specified accuracy down to 0.02°.

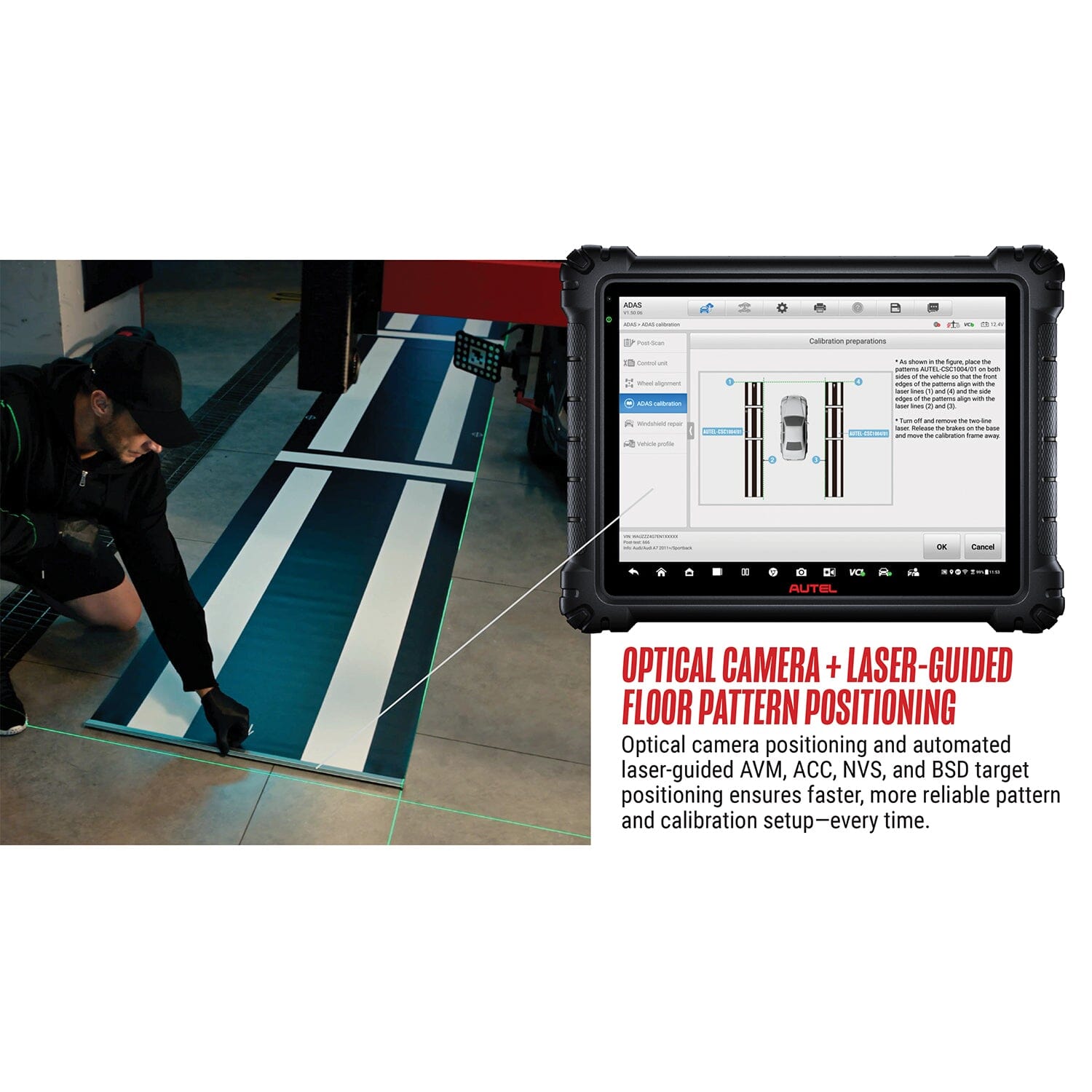

LASER-GUIDED FLOOR TARGET PLACEMENT
Integrated laser guidance helps position floor-based calibration equipment for BSD, ACC, AVM, night vision, and other supported ADAS procedures with less manual measuring.
ALIGNMENT & ADAS IN ONE SYSTEM
Perform four-wheel alignments and static ADAS calibrations from a single integrated platform, simplifying workflow while reducing equipment requirements.
UNLEVEL FLOOR COMPENSATION
Intelligent compensation technology helps maintain calibration accuracy while reducing failed calibrations caused by uneven shop floors.
Technical Details
• Automated All-Systems ADAS calibration and wheel alignment platform
• MaxiSYS Ultra S2 diagnostic tablet included
• IA1000 Activation Card included

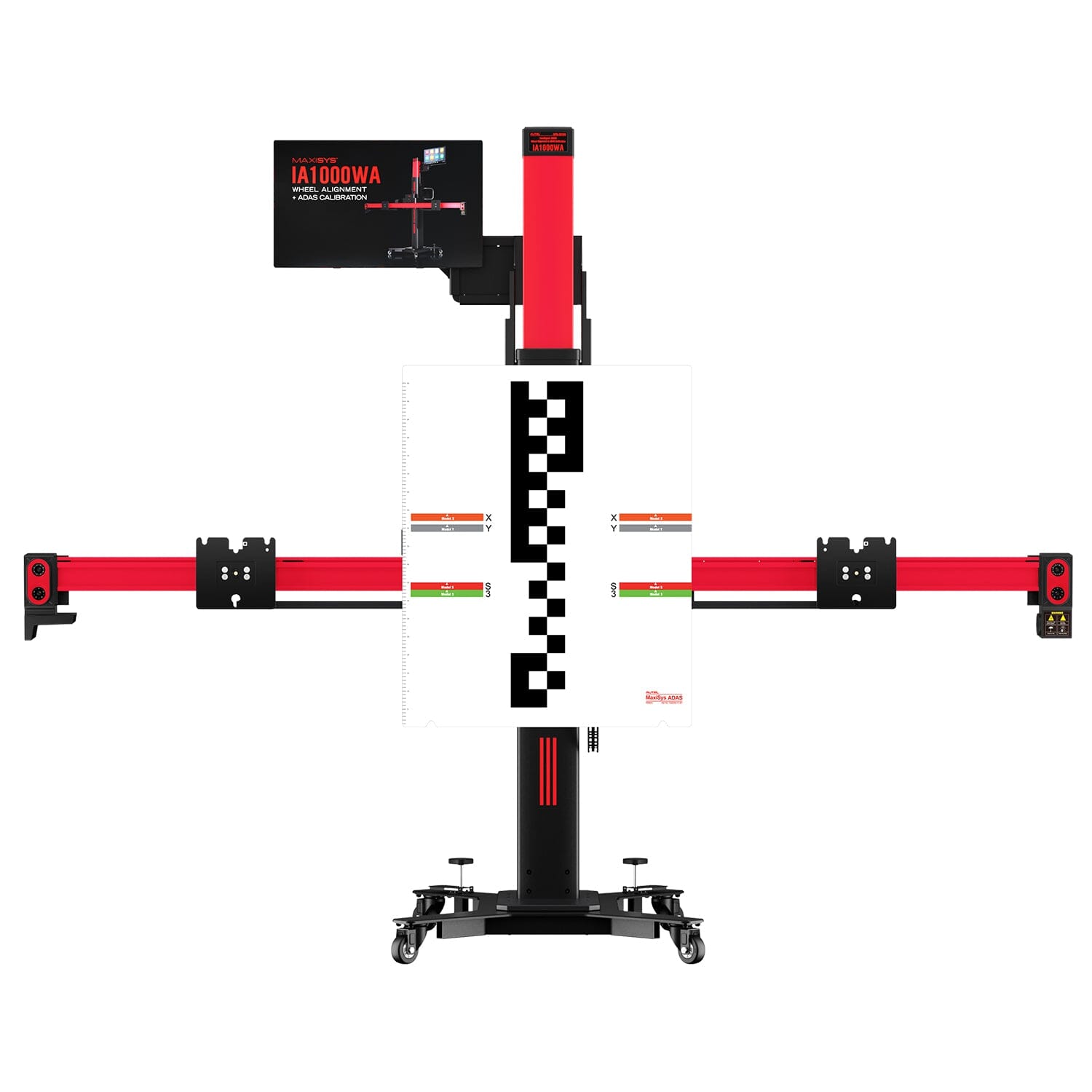

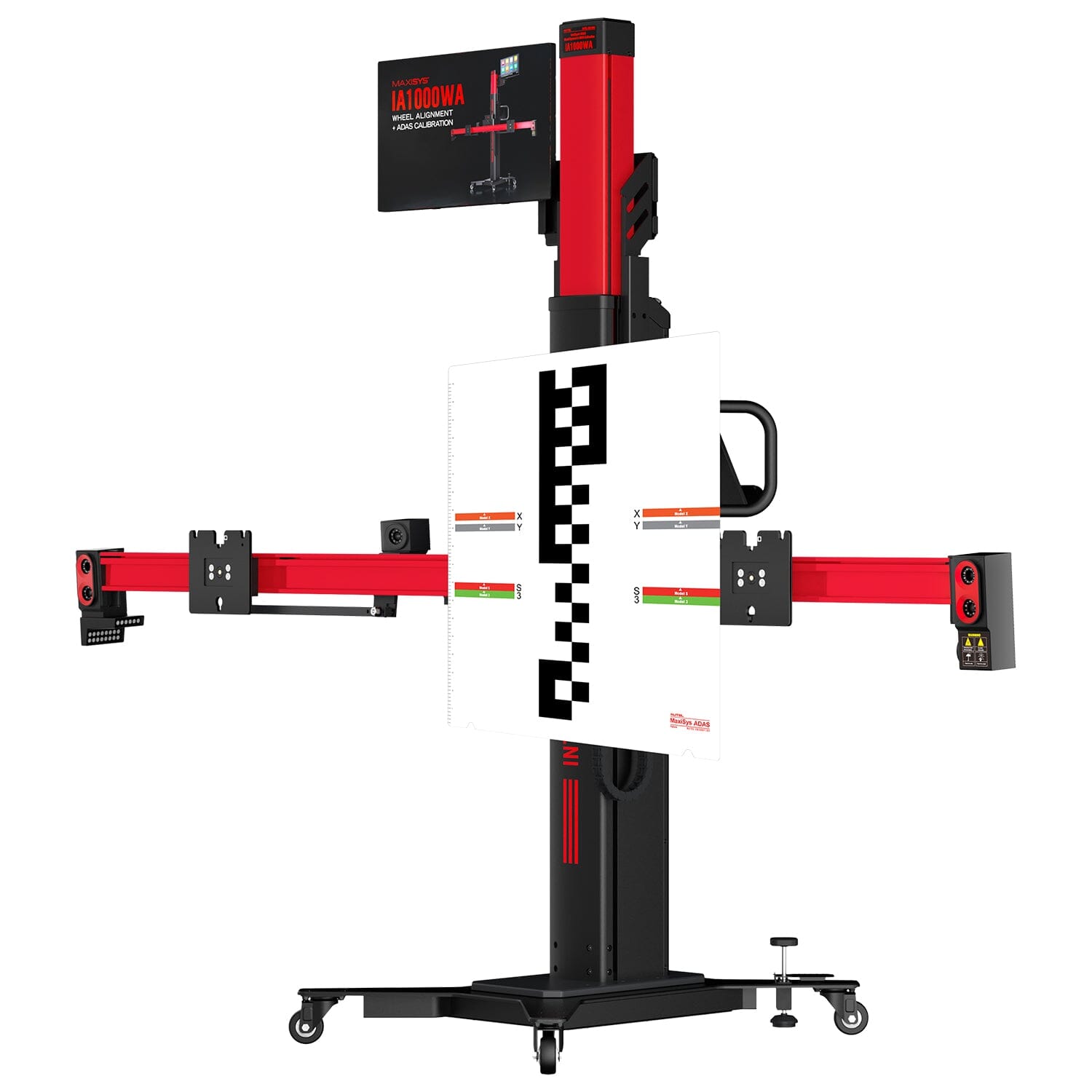

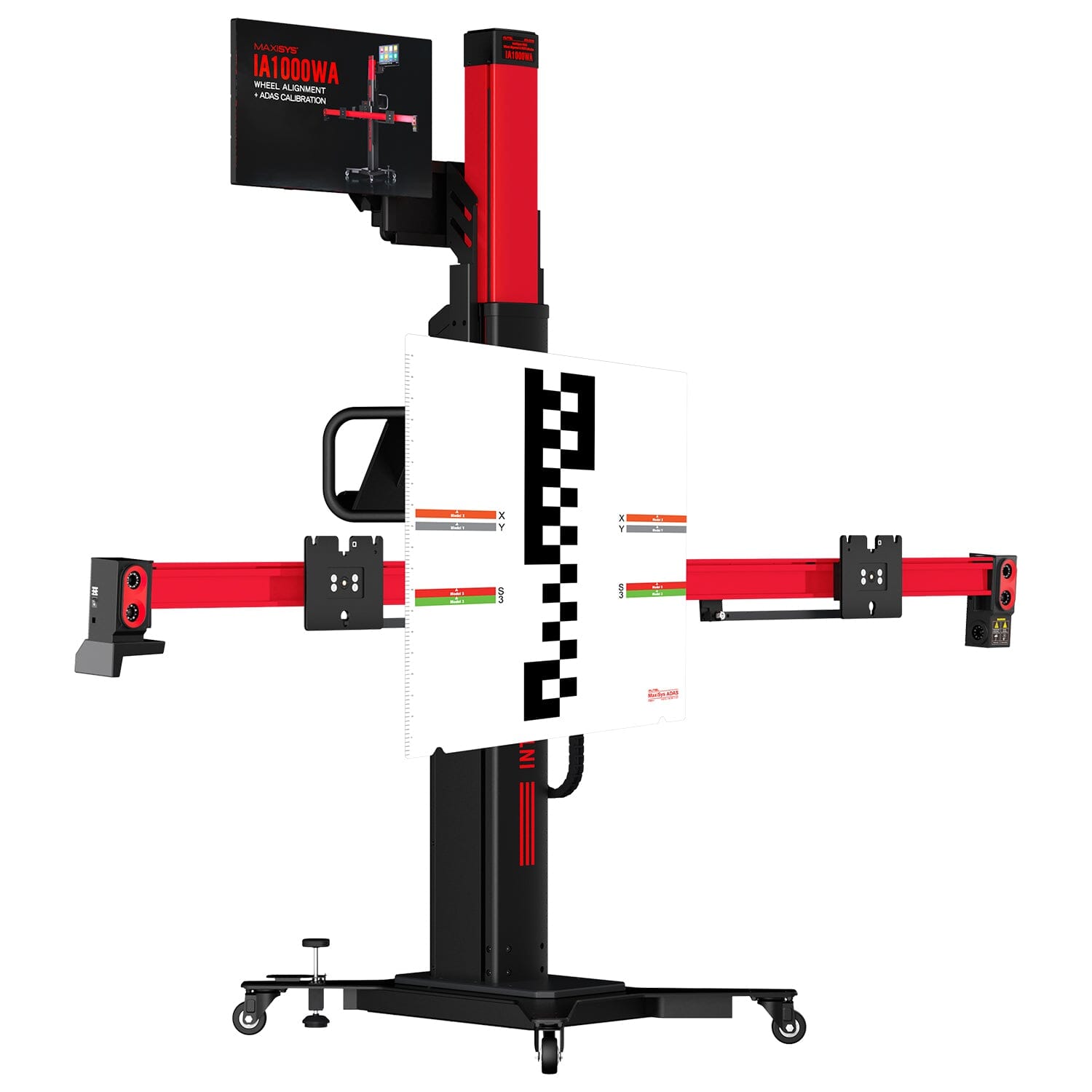

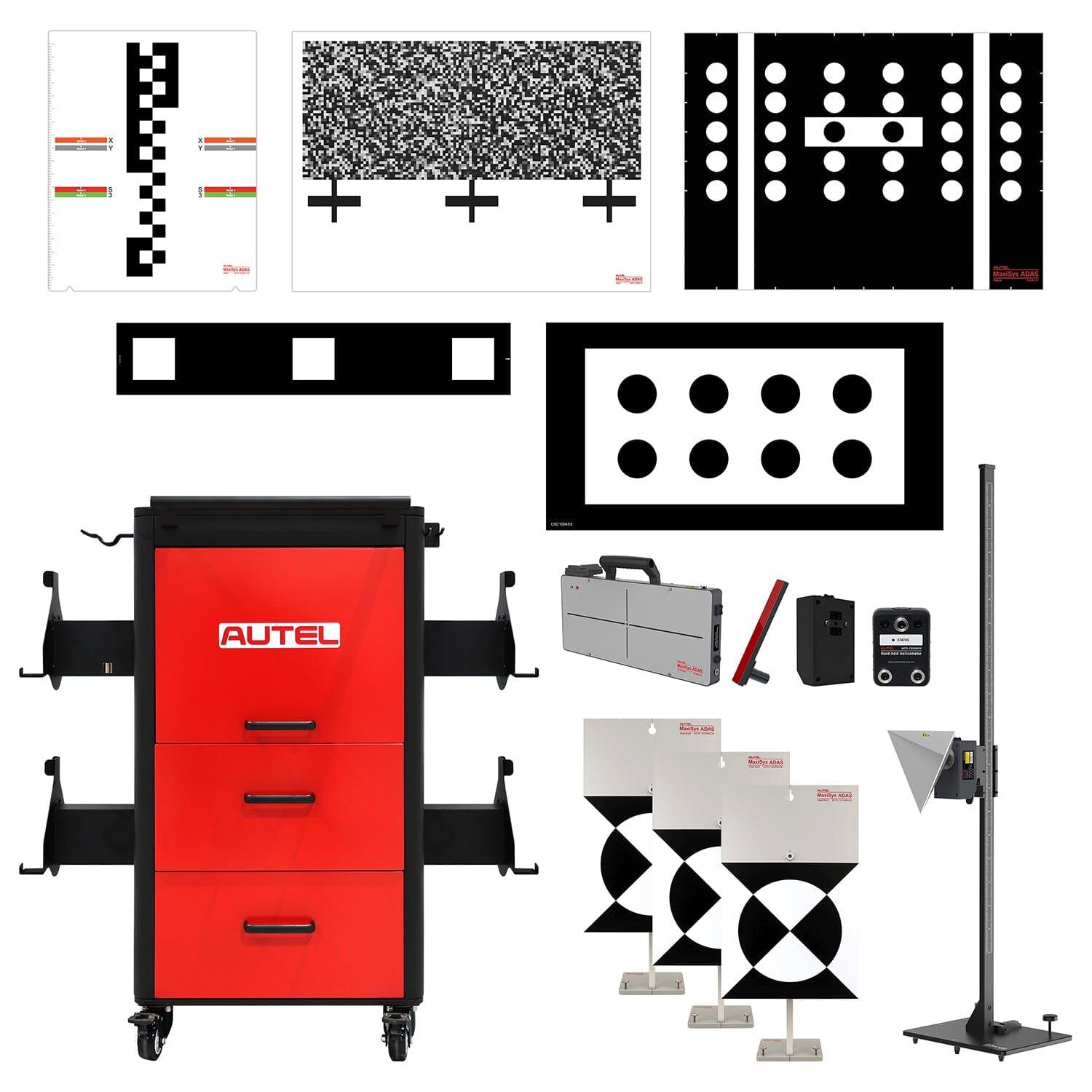

• Physical LDW targets included
• All Systems ADAS calibration equipment included
• 5-way robotic target positioning
• Automatic front-to-back frame positioning
• Automatic horizontal crossbar positioning
• Automatic vertical crossbar positioning
• Automatic pitch, roll, and yaw correction
• Automated target-spread positioning
• Six high-definition optical positioning cameras
• Laser-guided floor target placement
• Automatic unlevel floor compensation
• Alignment pre-check and full wheel alignment capability
• Advanced alignment measurements beyond camber, caster, and toe
• Supports LDW / forward-facing camera calibration
• Supports ACC / radar calibration
• Supports FCW calibration
• Supports BSM / BSD calibration
• Supports AVM calibration
• Supports RCW calibration
• Supports lidar calibration
• Supports night vision calibration
• Supports Honda LaneWatch calibration
• 13.7" anti-glare Ultra S2 touchscreen
• 12GB RAM + 512GB storage
• Android 13 operating system
• MaxiFlash VCMI2
• Topology 3.0 vehicle network analysis
• Active tests and special functions
• Coding and adaptations
• J2534 pass-thru programming support
• Integrated 4-channel oscilloscope
• Multimeter and CAN-Bus testing capability
• Broad U.S., Asian, and European vehicle coverage, 1996 and newer
• Four-wheel alignment and ADAS calibration software included for IA1000 operation
• Digital target monitors not included
