How it works
Product features

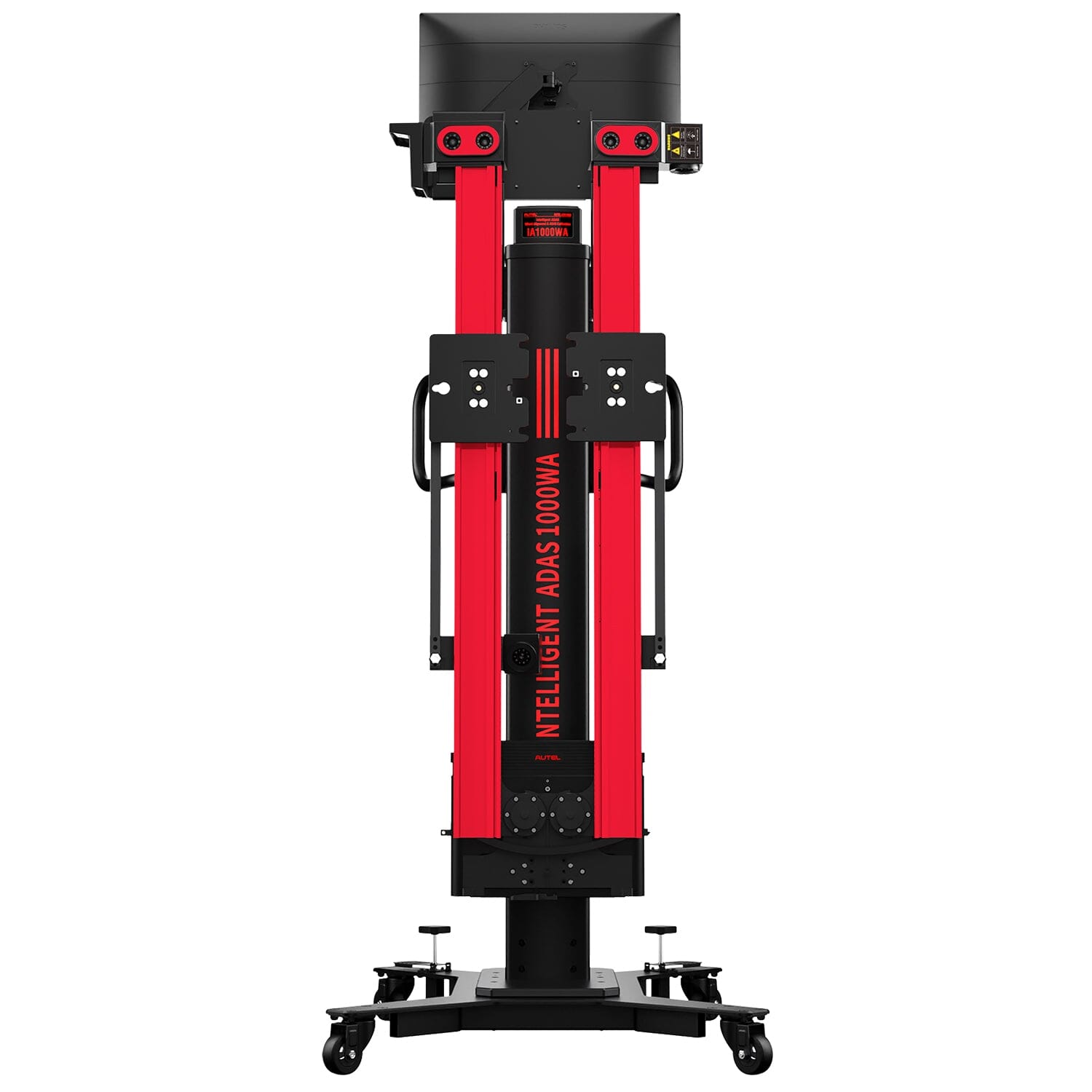

ROBOTIC FRAME MOVEMENT
Automated frame positioning streamlines setup, improves repeatability, and reduces technician time spent positioning calibration equipment.
.02° OPTICAL POSITIONING ACCURACY

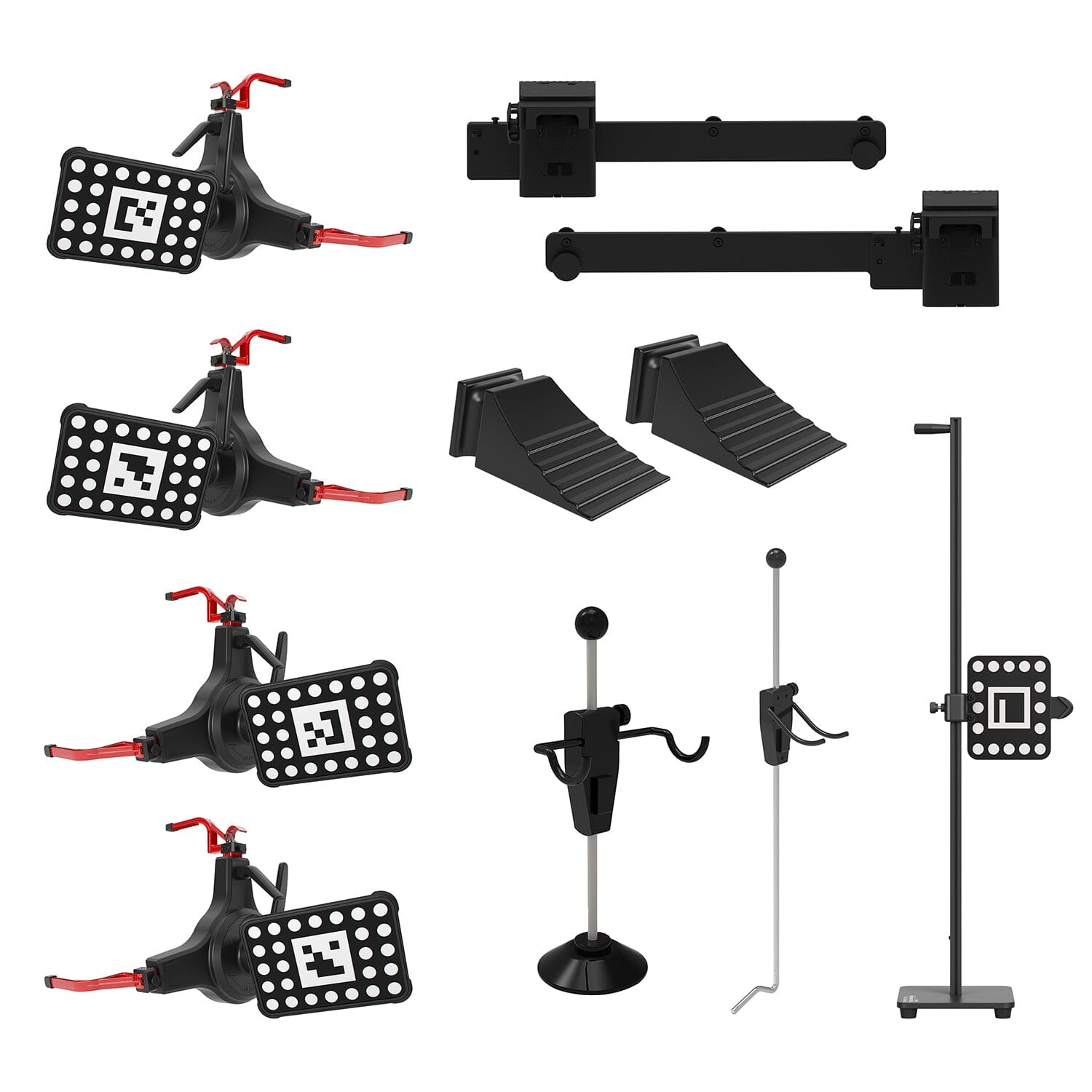

Six high-definition cameras work with precision wheel-clamp targets to map vehicle and frame position with Autel-specified accuracy down to 0.02°.
LASER-GUIDED FLOOR TARGET PLACEMENT
Integrated laser guidance helps position floor-based calibration equipment for BSD, ACC, AVM, night vision, and other supported ADAS procedures with less manual measuring.

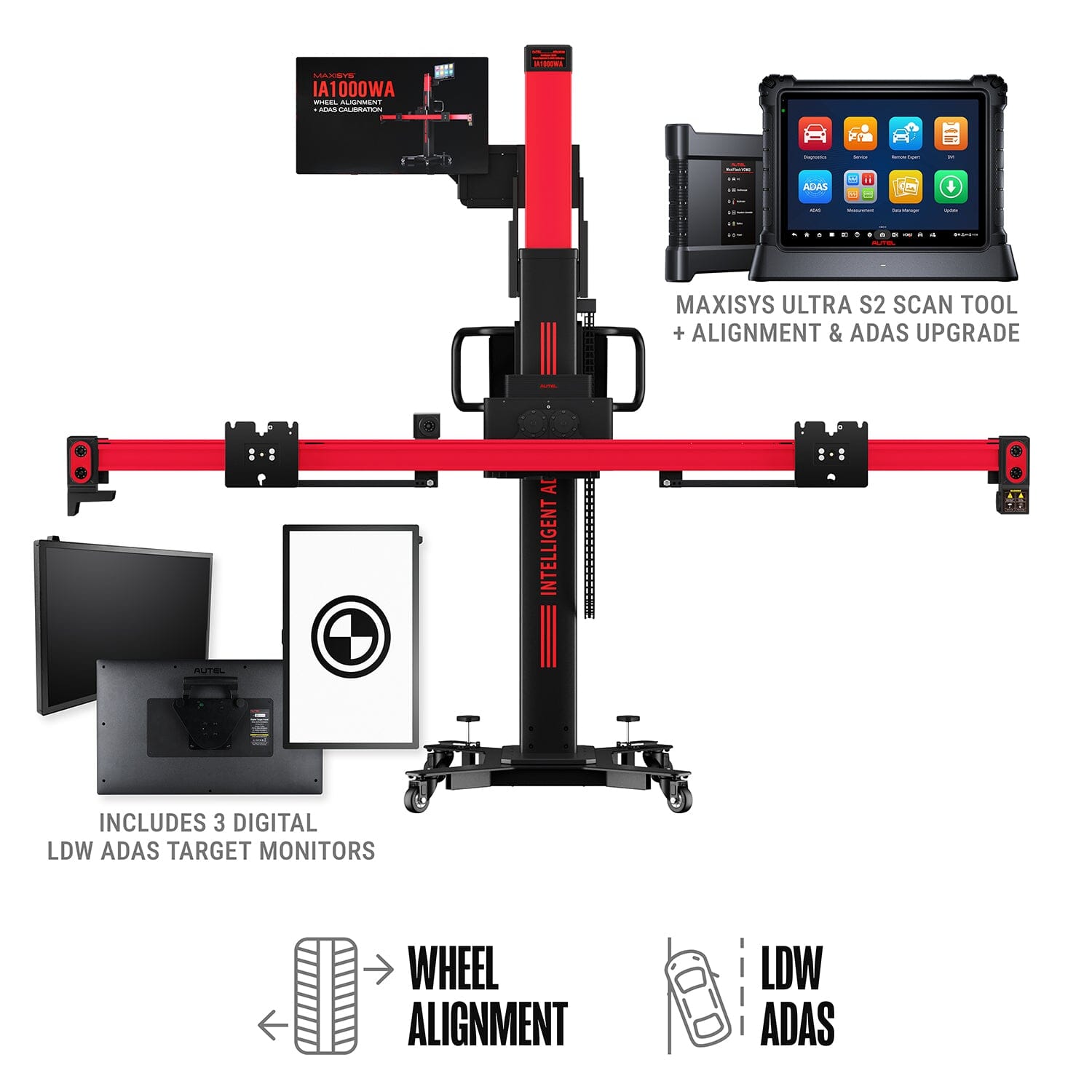

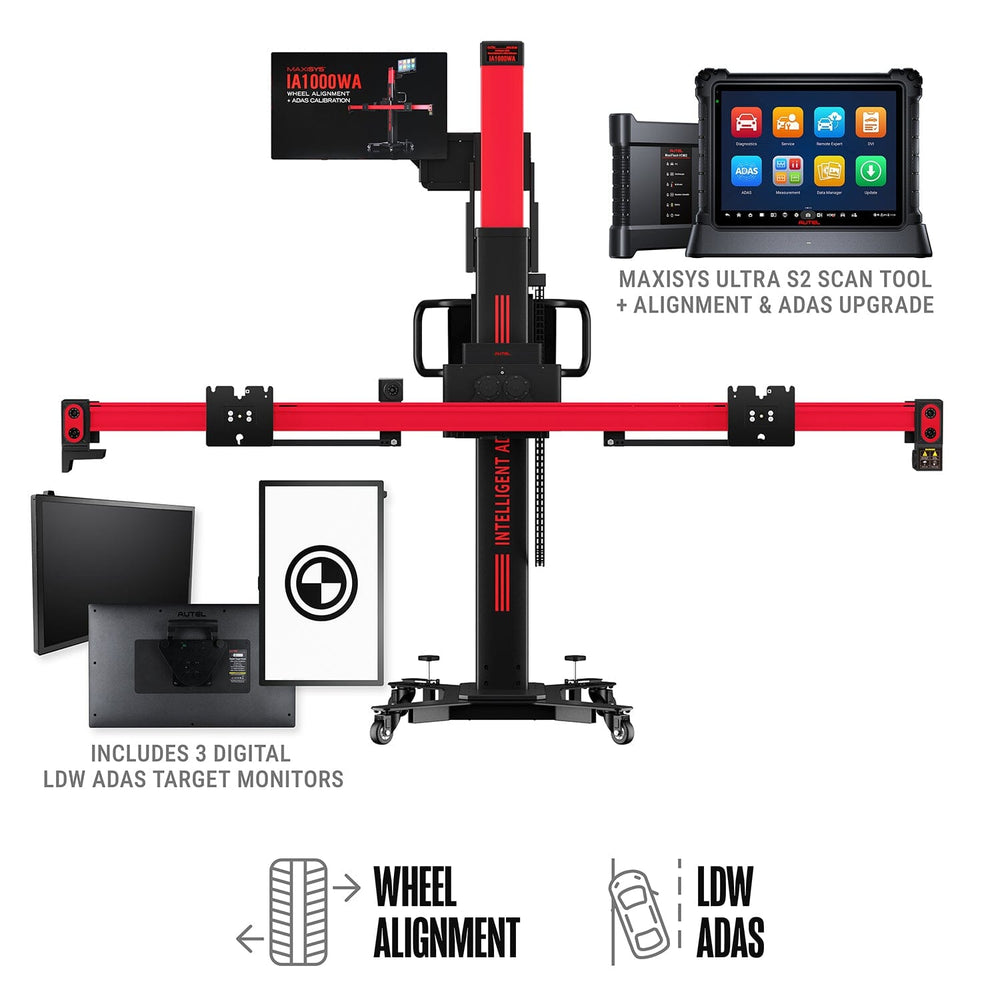

ALIGNMENT & ADAS IN ONE SYSTEM
Perform four-wheel alignments and static ADAS calibrations from a single integrated platform, simplifying workflow while reducing equipment requirements.
UNLEVEL FLOOR COMPENSATION
Intelligent compensation technology helps maintain calibration accuracy while reducing failed calibrations caused by uneven shop floors.
TABLET INCLUDED
Autel® Diagnostic Tablet with ADAS software included with the package!

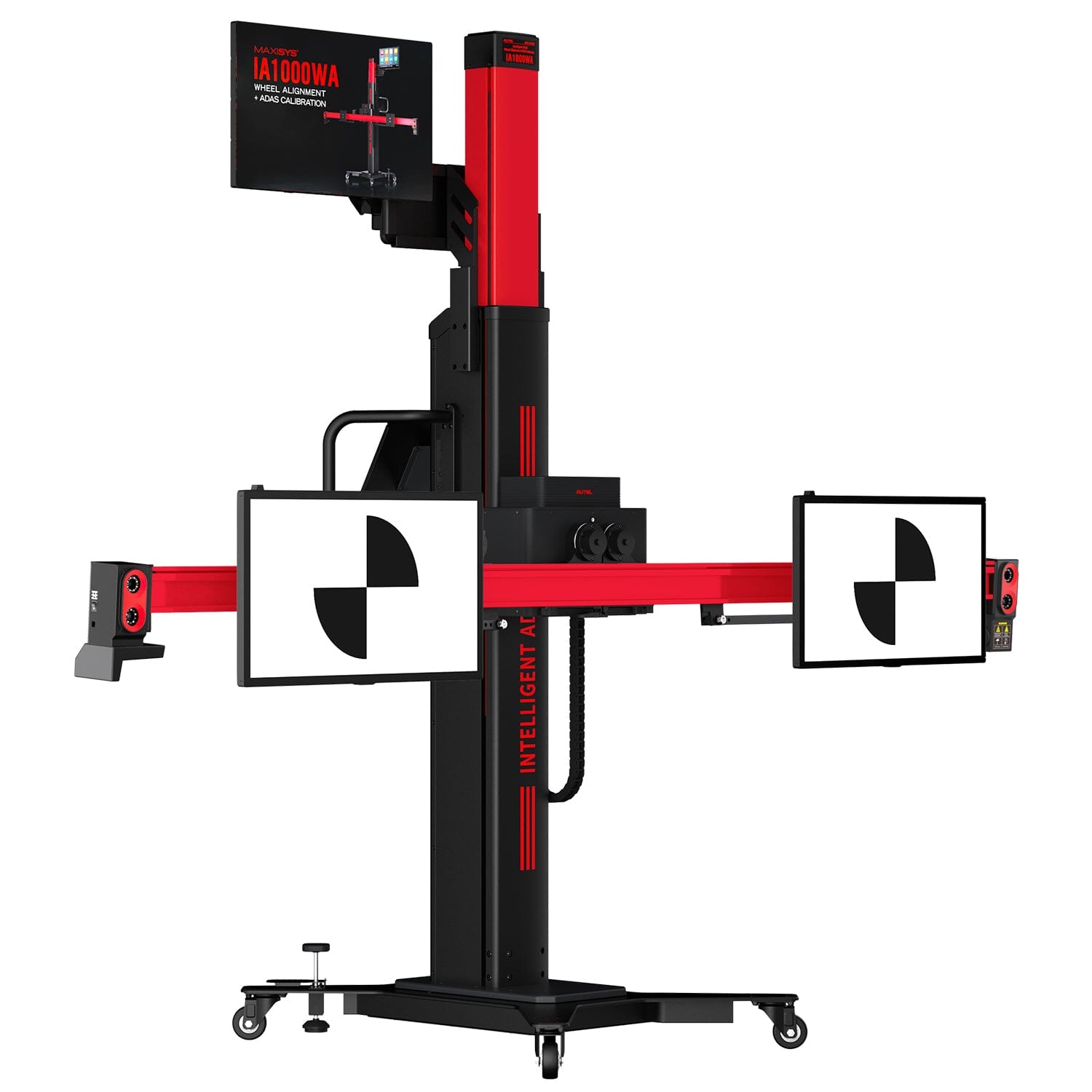

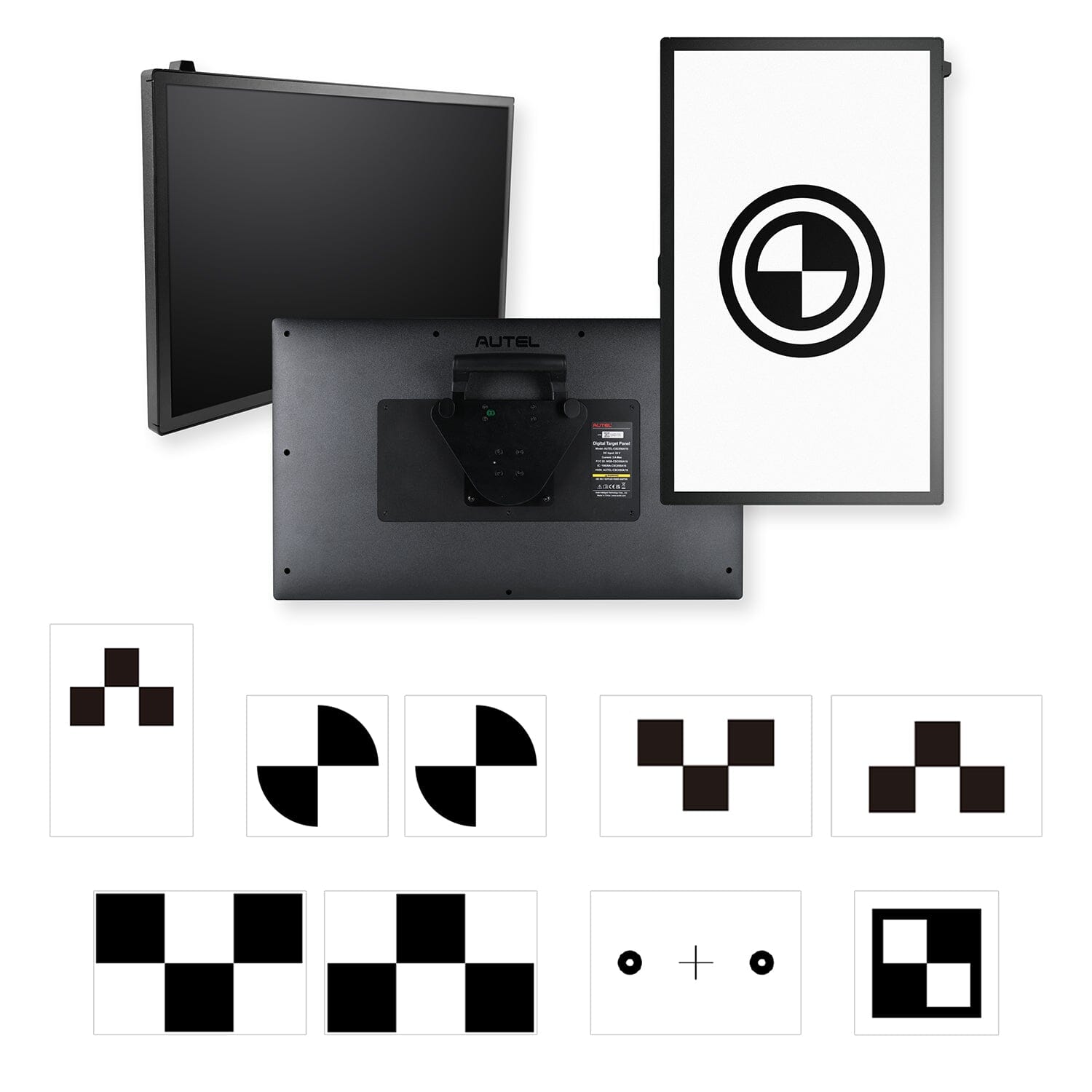

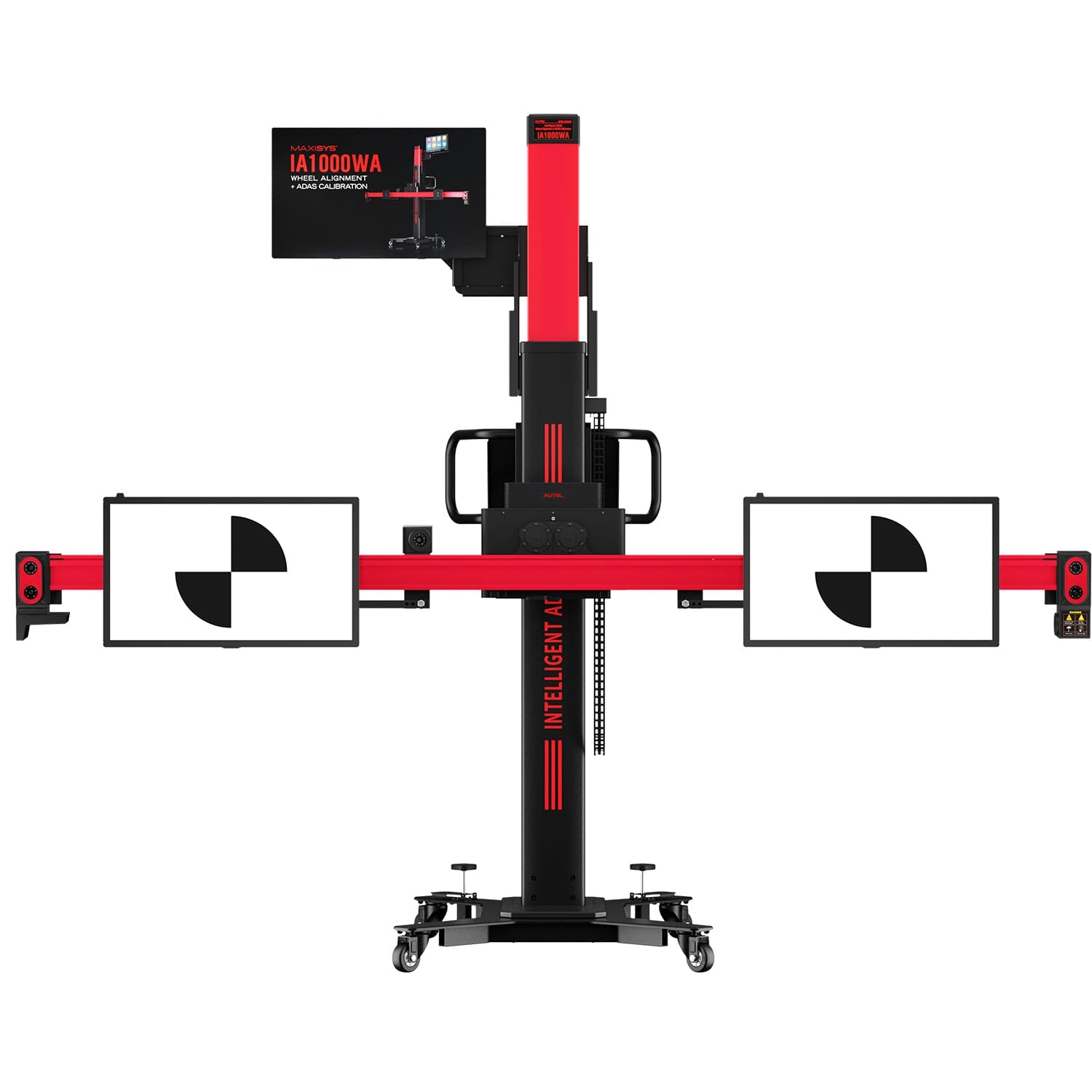

DIGITAL LDW TARGET SYSTEM
Three 27" digital monitors automatically display the supported vehicle-specific LDW calibration target, reducing physical target handling, changeover time, and storage requirements.
Technical Details
• Automated ADAS calibration and four-wheel alignment platform

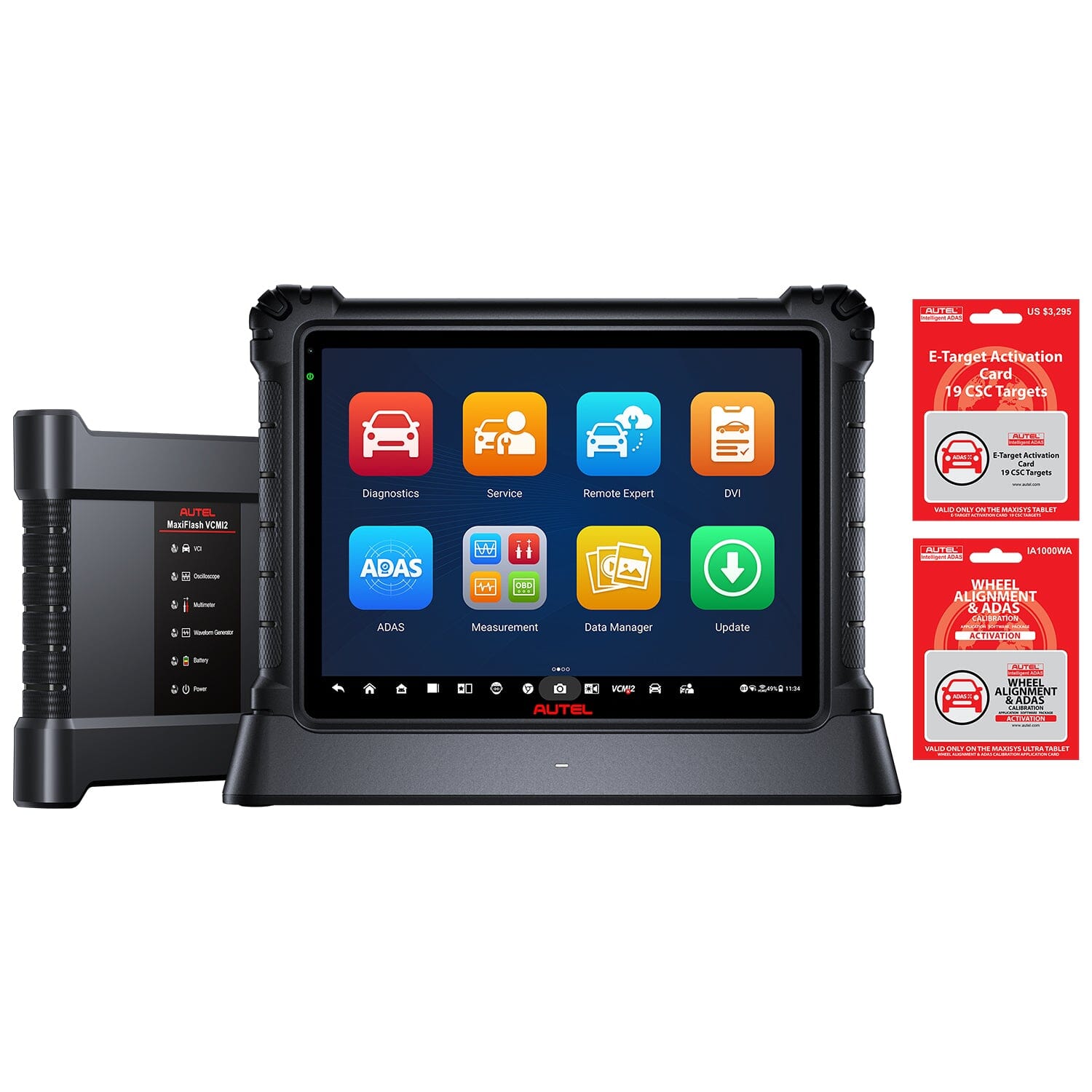

• MaxiSYS Ultra S2 diagnostic tablet included
• IA1000 Activation Card included
• 3 digital LDW target monitors included
• 27" digital target displays
• Digital Target Activation Card included
• Automatic vehicle-specific digital target display for supported procedures
• Self-adjusting digital display brightness
• Over-the-air digital target updates

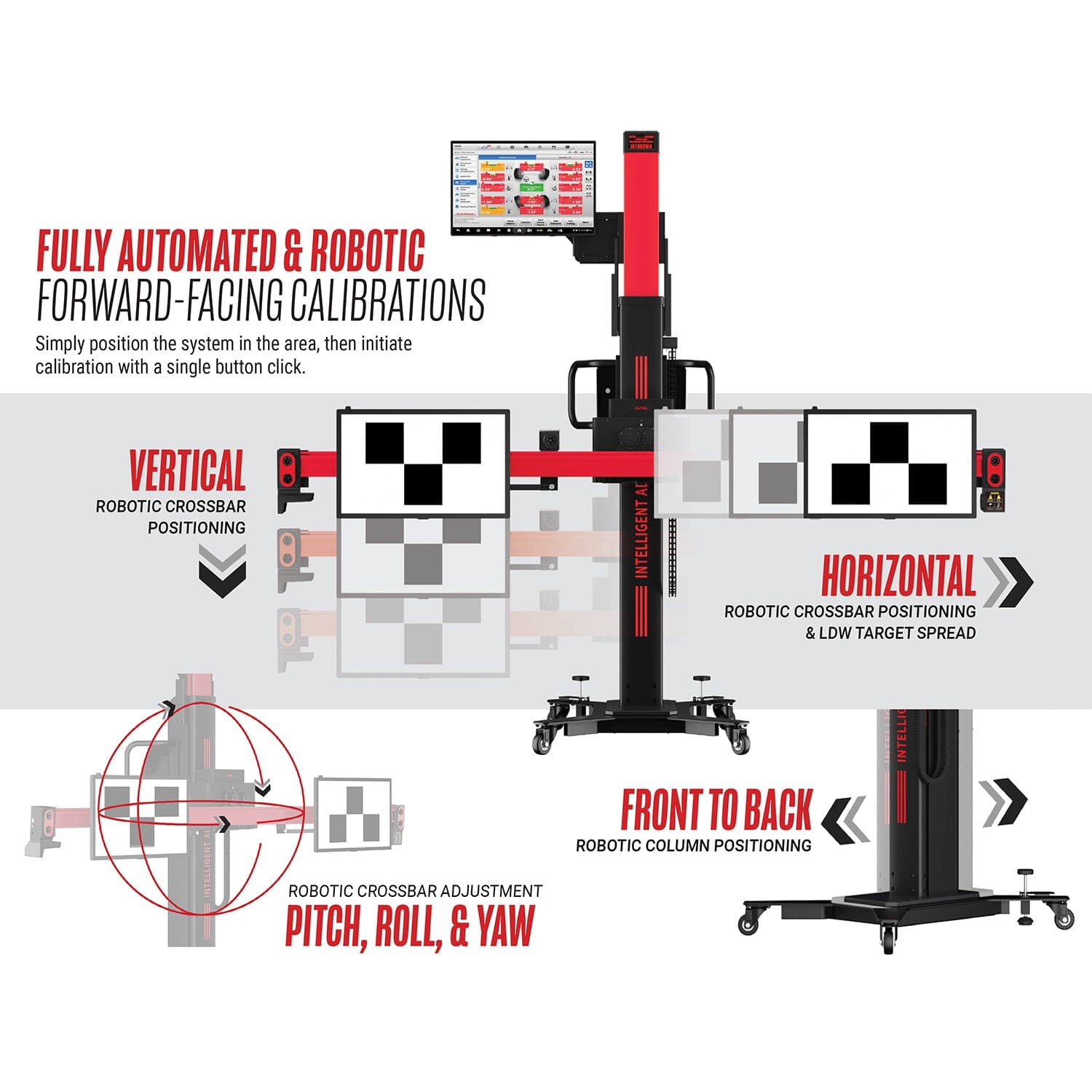

• 5-way robotic frame and target positioning
• Automatic front-to-back positioning
• Automatic horizontal and vertical crossbar positioning
• Automatic pitch, roll, and yaw adjustment
• Automated LDW target spread capability
• Six high-definition optical positioning cameras
• Autel-specified positioning accuracy down to 0.02°
• Integrated laser-guided floor target positioning
• Digital Go/No-Go setup validation
• Automatic unlevel floor compensation
• Supports level floors, uneven surfaces, and rack environments
• Advanced four-wheel alignment measurement capability
• Measures camber, caster, and toe
• Measures thrust angle
• Measures steering axis inclination
• Measures toe-out on turns
• Supports additional chassis geometry measurements
• 13.7" anti-glare Ultra S2 touchscreen
• 12GB RAM + 512GB storage
• Android 13 operating system
• MaxiFlash VCMI2 vehicle communication and measurement interface
• Topology 3.0 network analysis
• Active tests and special functions
• Coding and adaptations
• Integrated 4-channel oscilloscope
• Multimeter and CAN-Bus testing capability
• J2534 pass-thru support
• Broad U.S., Asian, and European vehicle coverage, 1996 and newer
• Four-wheel alignment and ADAS calibration software included when configured for IA1000
• Physical LDW target package not included
• All Systems ADAS calibration package not included
