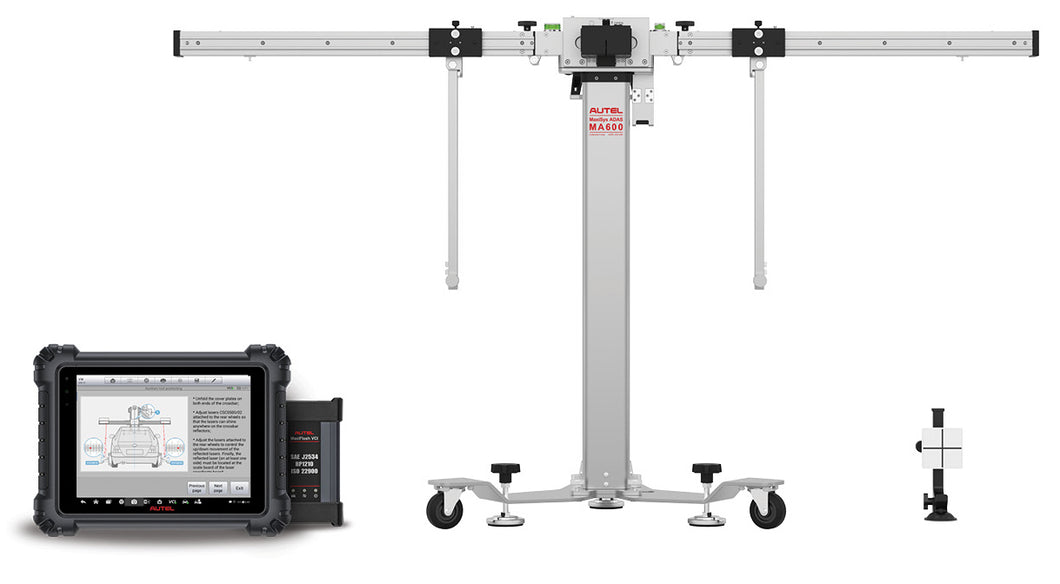

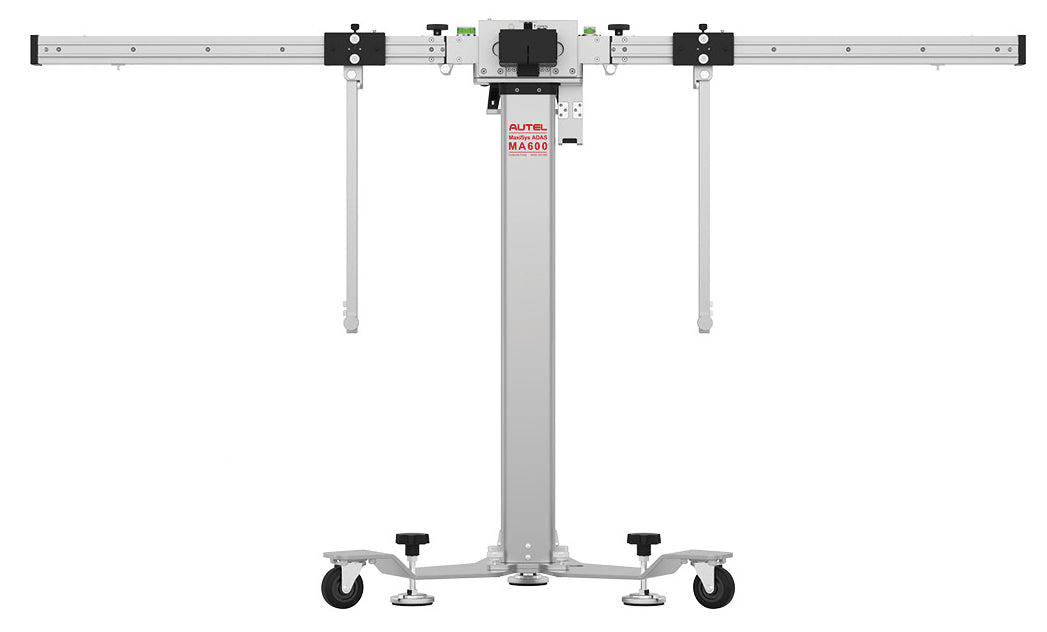

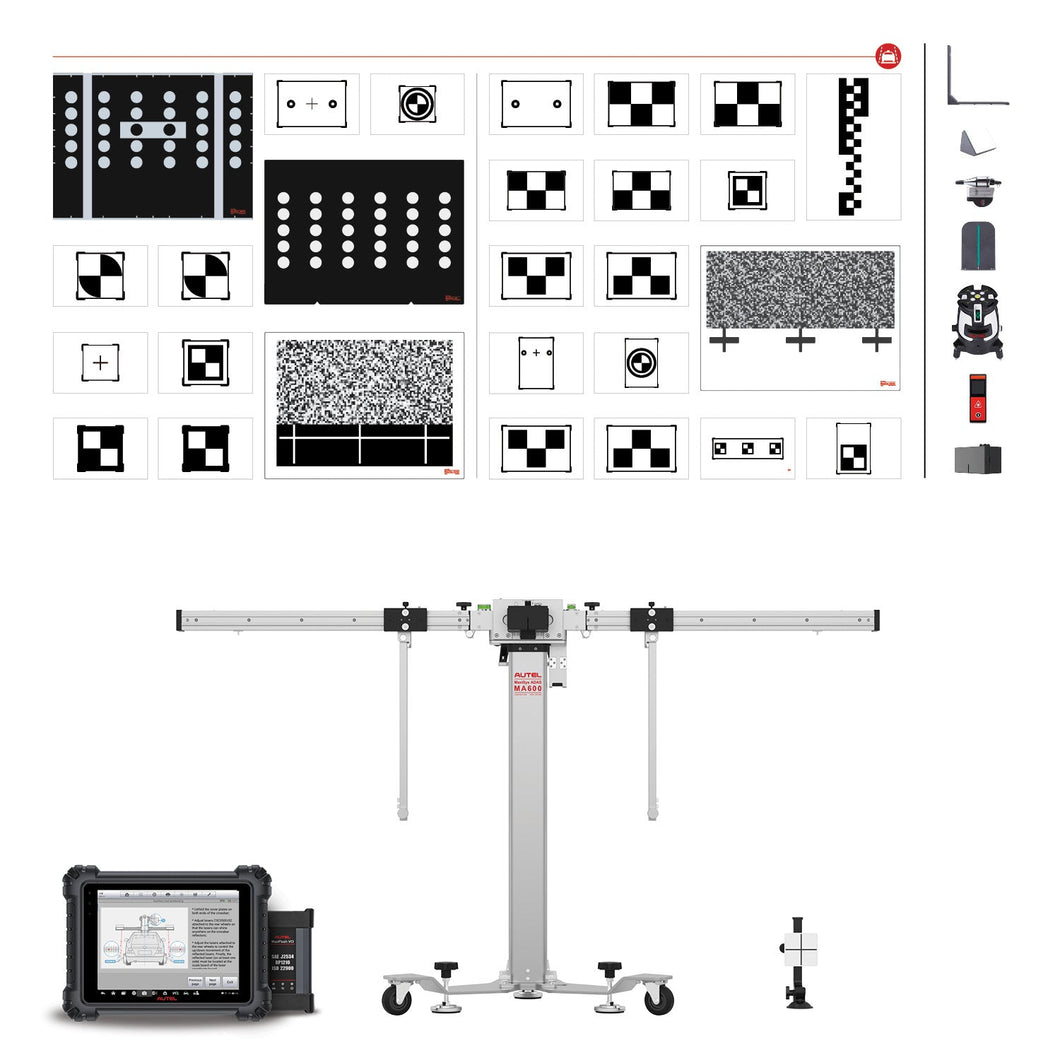

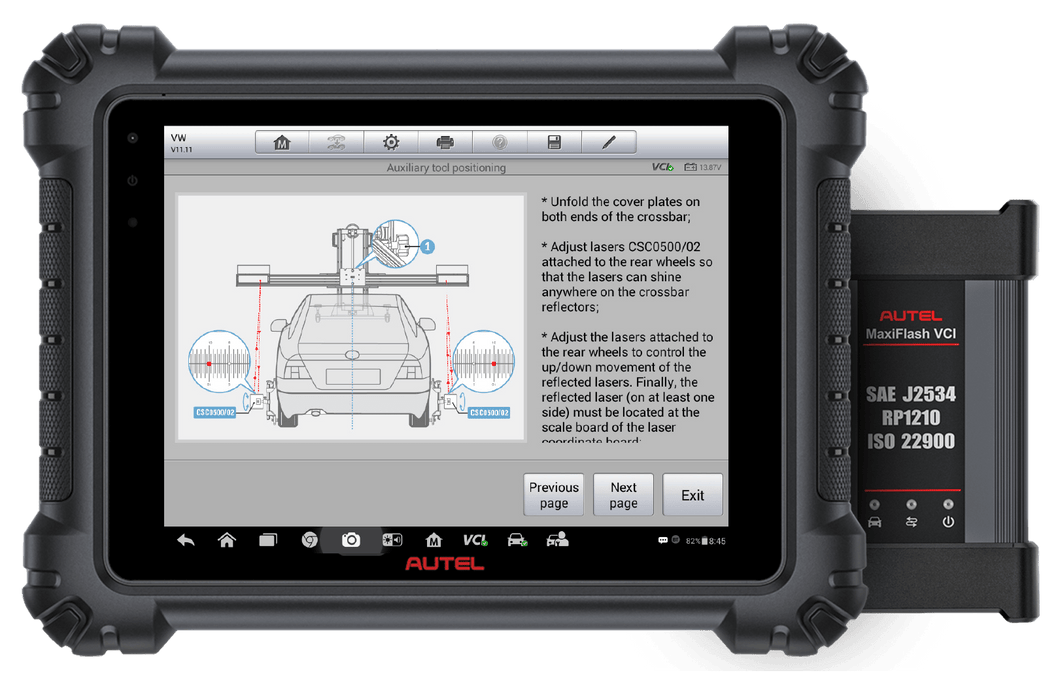

Autel MA60020T ADAS Mobile Calibration Frame + MS909 Tablet

Portable - Easily foldable frame create freedom to calibrate faster in many locations
Precise - The new distance laser and accessories provide a quicker leveling process with vehicle for Millimeter Ruler Accuracy Adjustable - Fine-tuning nobs to easily
Hardware Features

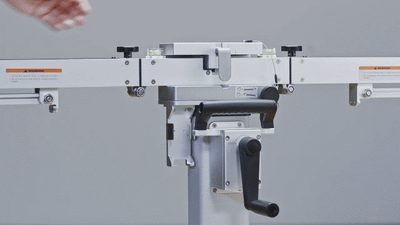

Precise millimeter-level accuracy with multiple laser positioning and measurement tools
Portable flexible and easy for storage: quickly folded for transport
Affordable modular frame assembled with accessory tools for calibration
Affordable easy to move
Software Features

Smart compatible use with leveling lift adjustment
Accurate regular updates of latest OE-level diagnostic and calibration software
Accurate correct calibration
Intuitive tutorial graphics and step-by-step instructions
Intuitive Pre-Scan and Post-Scan Reports (ADAS module identification, calibration)
Expansive wider vehicle coverage

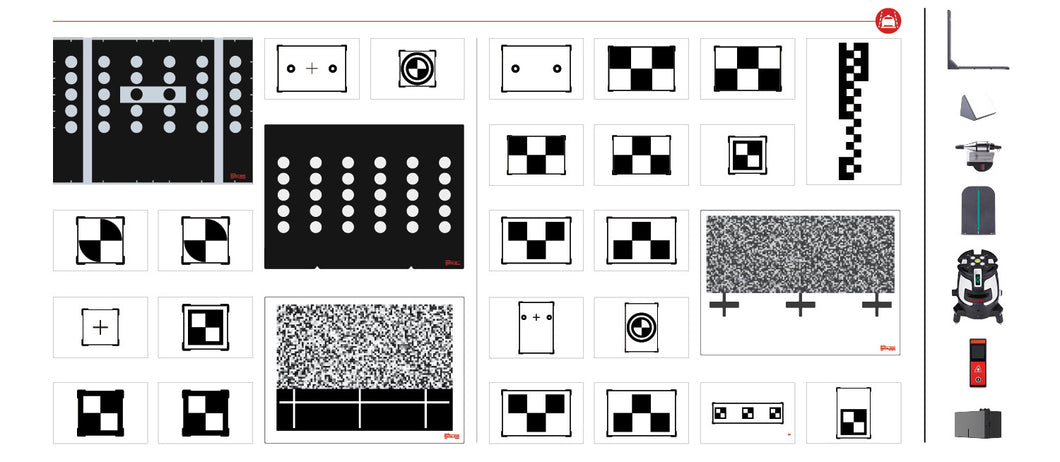

Expansive extend camera calibration to AVM and RCW systems with purchase of oversize patterns
MaxiSys 909 Tablet Features

Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicle makes, including supercars
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Specifications

Shipping Dimensions: 54" H x 105" L x 42" W
Shipping Weight: 640 lbs.
Pattern Board Specifications

Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
Rated Power: 24V, 3A
Laser Rated Power: 3V, 25mA
Laser Battery Type: AA 2x1.5V
Calibration Frame Working Temp: 0? to 50?
Calibration Frame Storage Temp: -20? to 60°C
Laser Class: Class 2
Certification: CE, FCC, RoHS
MaxiSYS MS909 Tablet Specifications

Operating System: Android 7.0
Processor: Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 128GB On-board Memory
Display: 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
Connectivity: BT v.2.1 + EDR
Connectivity: GPS
Connectivity: USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
Connectivity: HDMI 2.0
Connectivity: SD Card (Support up to 256GB)
Camera (Rear): 16 Megapixel, Autofocus with Flashlight
Camera (Front): 5.0 Megapixel
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone
Audio Input/Output: Dual Speakers
Audio Input/Output: 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 15000mAH 3.8V lithium-polymer battery
Power and Battery: Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12V/3A Adapter
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D): 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight: 1.66kg (3.66 lb.)
Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
