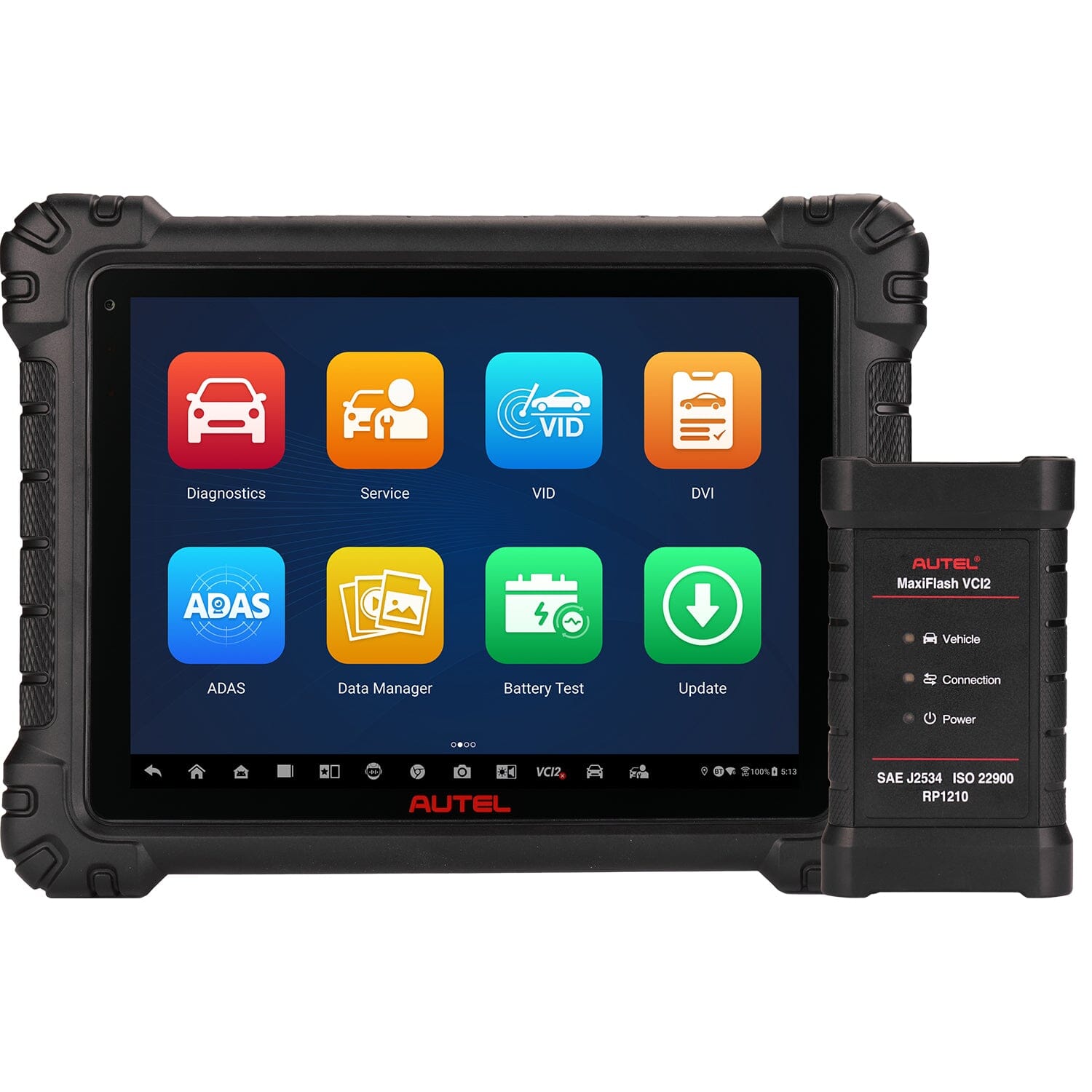

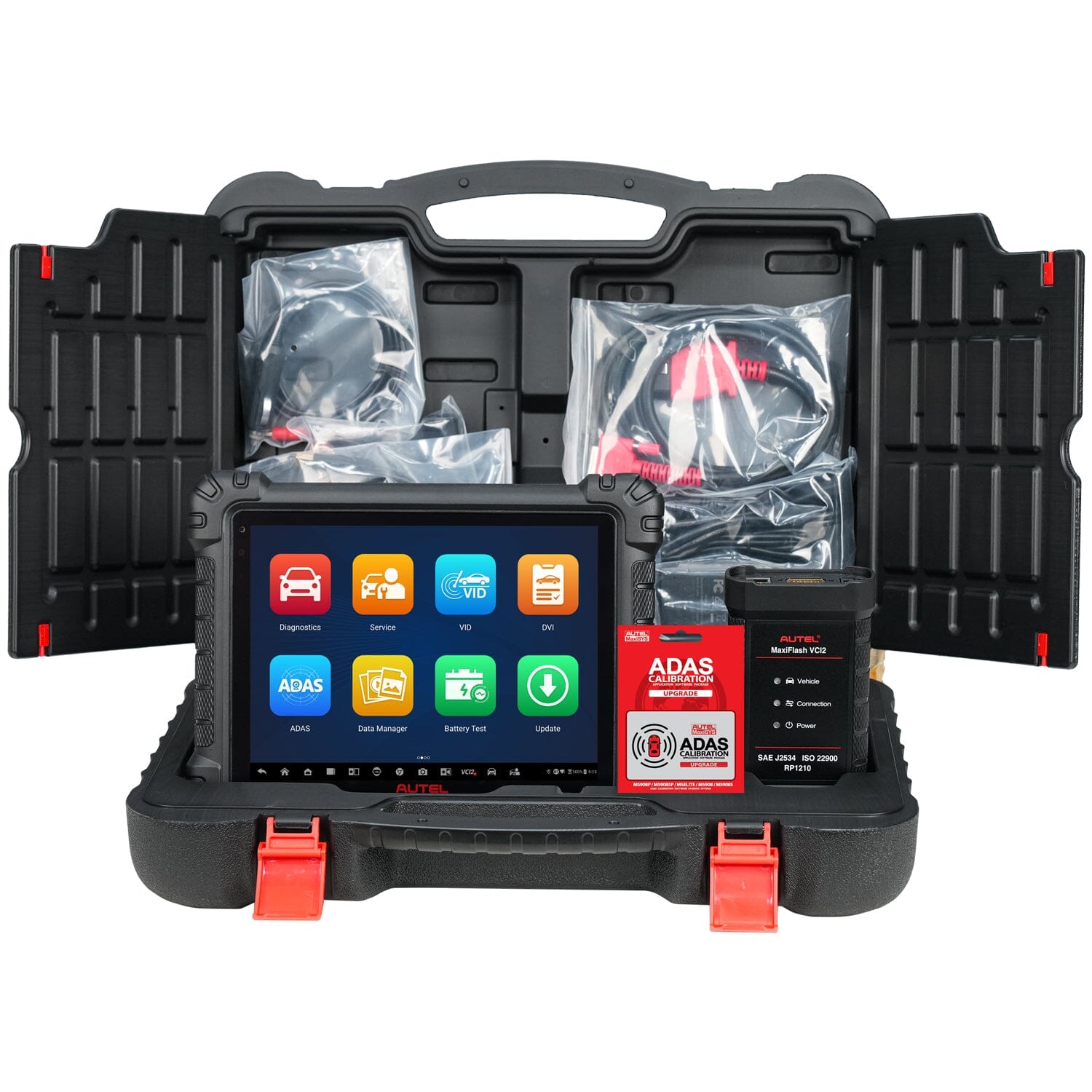

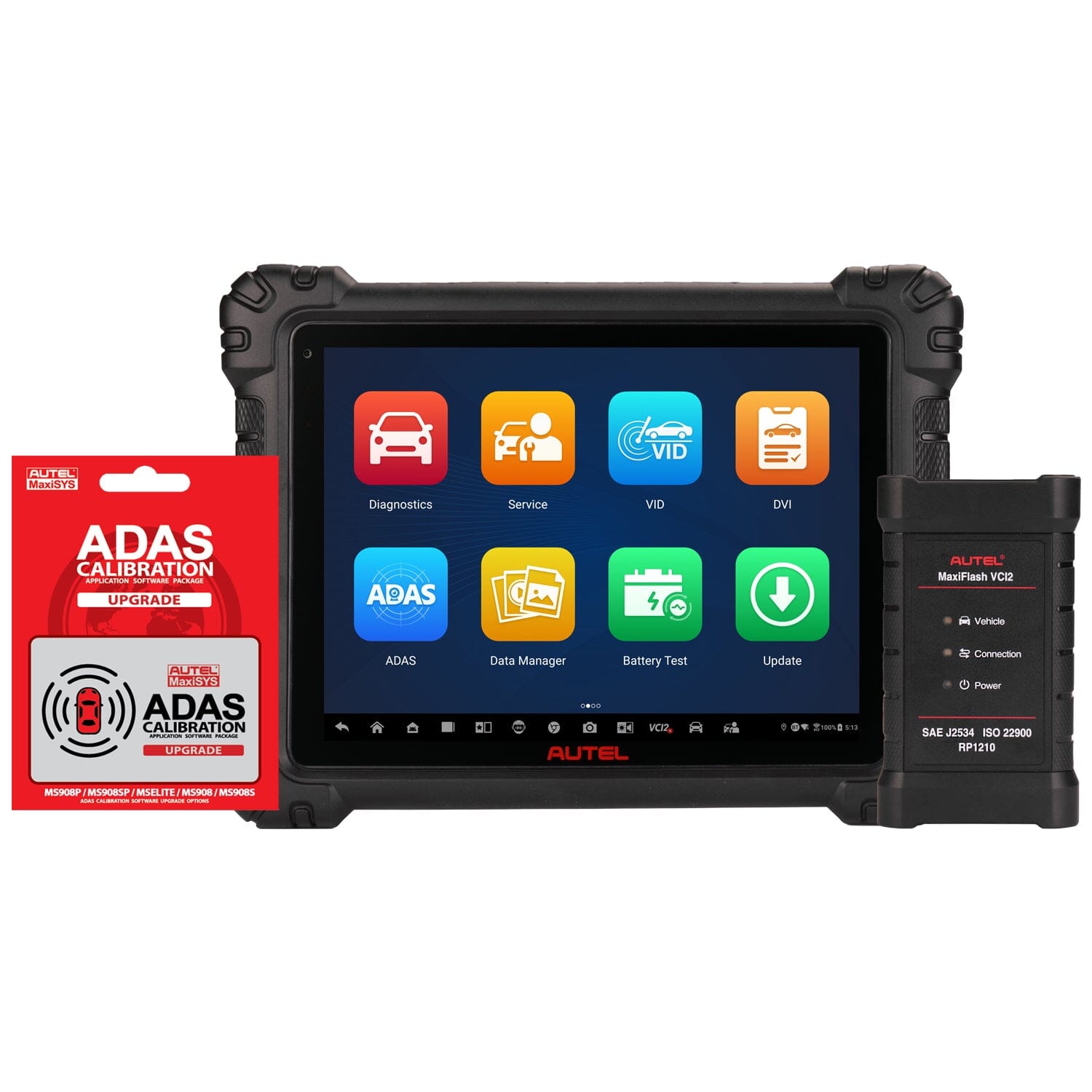

Autel MS909S2ADAS MaxiSYS MS909 S2 Diagnostics Tablet with ADAS Upgrade
Autel MS909S2ADAS MaxiSYS MS909 S2 Diagnostics Tablet with ADAS Upgrade
Autel MS909S2ADAS MaxiSYS MS909 S2 Diagnostics Tablet with ADAS Upgrade
Autel MS909S2ADAS MaxiSYS MS909 S2 Diagnostics Tablet with ADAS Upgrade
Frequently bought together
How it works
Product features
OE-Level Diagnostic & Calibration Software
Handle pre-scans, all-systems diagnostics, active tests, coding, adaptations, ADAS calibration, post-scans, and documentation without switching between separate diagnostic platforms.
ADAS SOFTWARE INCLUDED
Static and dynamic ADAS calibration software is already included, giving technicians the software foundation for supported camera, radar, lidar, night vision, and other calibration procedures when paired with the required Autel hardware.
Technical Details
• ADAS calibration software included
• Supports supported static and dynamic ADAS calibration procedures
• Calibration frame, targets, and calibrators sold separately
• All-systems diagnostics
• Bi-directional active tests
• Special and hidden functions
• Coding and adaptations
• 45+ maintenance and reset functions
• Pre-scan and post-scan reporting
• Digital Vehicle Inspection capability
• Security-gateway access on supported vehicles
• Remote Expert readiness
• MAX hands-free navigation assistant
• Topology 3.0 vehicle network analysis
• Live Data Fusion
• Parameter Grouping
• Reference Sampling
• Enhanced PID graphing

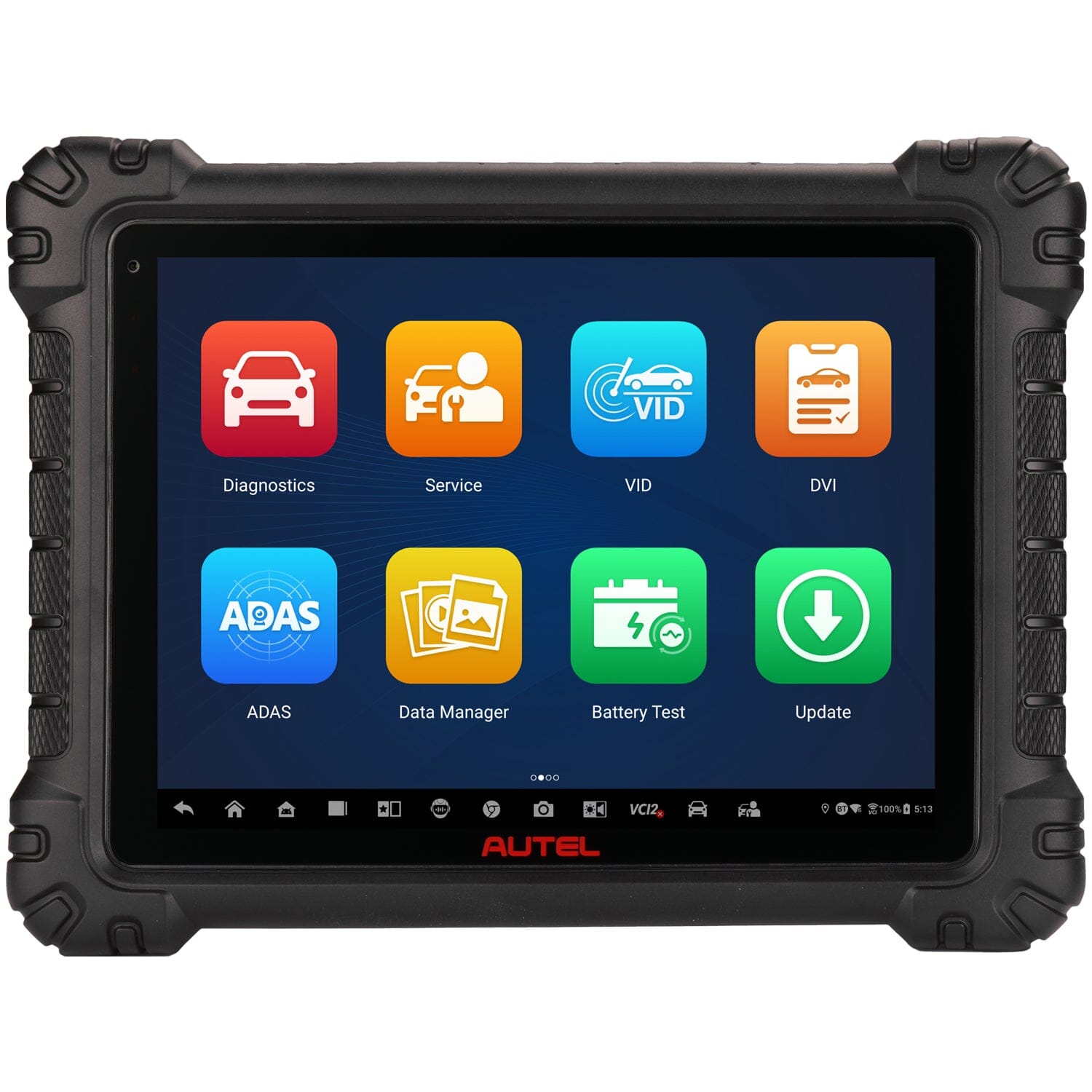

• 11" anti-glare touchscreen
• 2176 × 1600 display resolution
• Android 13 operating system
• 2.7 GHz 8-core processor
• 12GB RAM
• 256GB onboard storage
• Expandable storage up to 256GB via SD card
• 15,000 mAh lithium-polymer battery
• 16MP rear autofocus camera with flash
• 16MP front camera
• Wi-Fi 6 compatible
• Bluetooth 5.2 + EDR
• 2 USB-A ports + USB-C
• HDMI 2.0
• Dimensions: 12.42" × 9.46" × 1.54"
• Weight: 3.65 lbs.

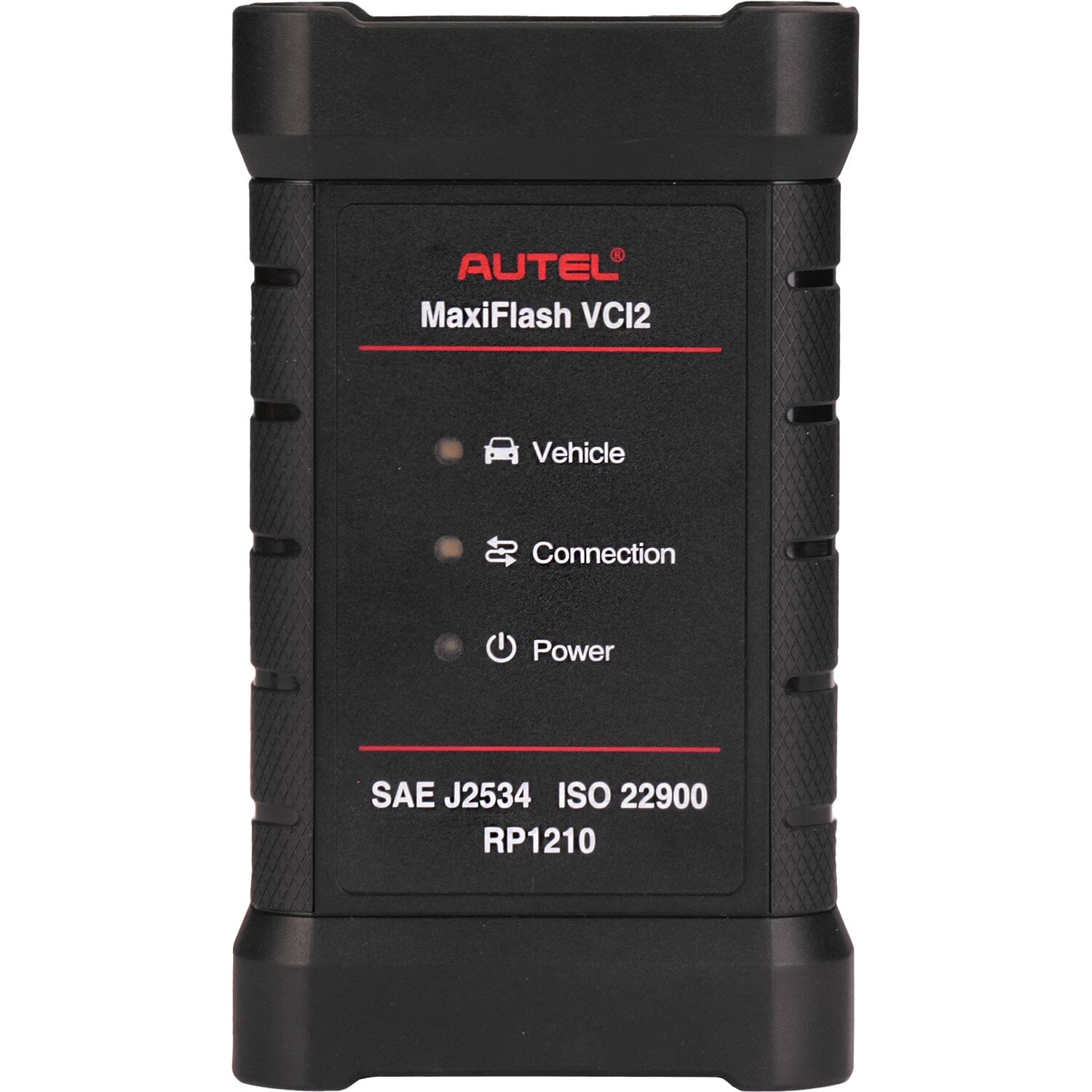

• MaxiFLASH VCI2 included
• Wireless Bluetooth, Wi-Fi, and USB vehicle communication
• J2534 capability
• ISO 22900 capability
• RP1210 capability
• CAN FD support
• DoIP support
• Broad U.S., Asian, and European vehicle coverage, 1996 and newer
• Non-OBDII adapters sold separately
