Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package

Autel CV ADAS All Systems Package
Free Gift

CVAAS
Write a review
This product is available
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package
Autel CV ADAS All Systems Package

$21,395.00 $20,055.00 Sale

Shipping cost is calculated in your cart
Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys CV ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration for Light Duty 1-3 Class Vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

view more

Need help?

Refer to our FAQs
Chat with our Technical Experts

1 Year Warranty

This tool is covered by our no-hassle Ironclad 1 Year Warranty

Shipping

Click to view our shipping policies

Shipping & Details

  • Shipping:
    All orders will be processed and shipped within 1 or 2 business days upon payment not including weekends and based on the UPS or USPS delivery service requested.
  • You will receive an email confirmation with tracking information as soon as your order is processed and shipped.
  • All orders placed within the United States of America will ship by the UPS or USPS service chosen by the customer.
  • All orders shipping to international addresses will ship via UPS International Economy. All international orders outside the United States of America are subject to customs, duty taxes, and brokerage fees if applicable. Customer is responsible for these fees.
  • Returns:
    All Sales are Final. Returns and exchanges are accepted only if: 1) The wrong product was sent. 2) Any or all of your products were damaged in transit by the shipping carrier. or 3) A warrantied item is factory defective. See Terms of Service Link below for more details. Some Returns may be subject to a 20% restocking fee. Click "Legal Policies" link at the bottom of the website for more details.

Check if you’re pre-qualified

Description

[description] Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys CV ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration for Light Duty 1-3 Class Vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

[/description]

Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys CV ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration for Light Duty 1-3 Class Vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.


[/description]

Features

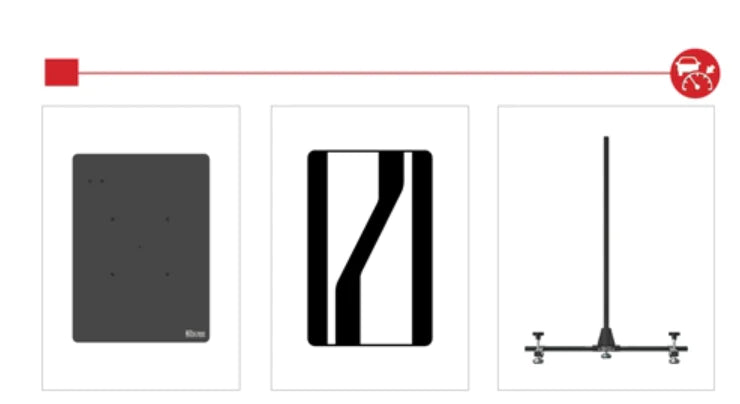

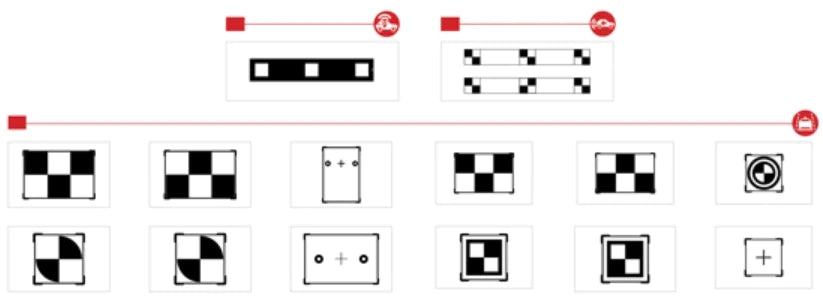

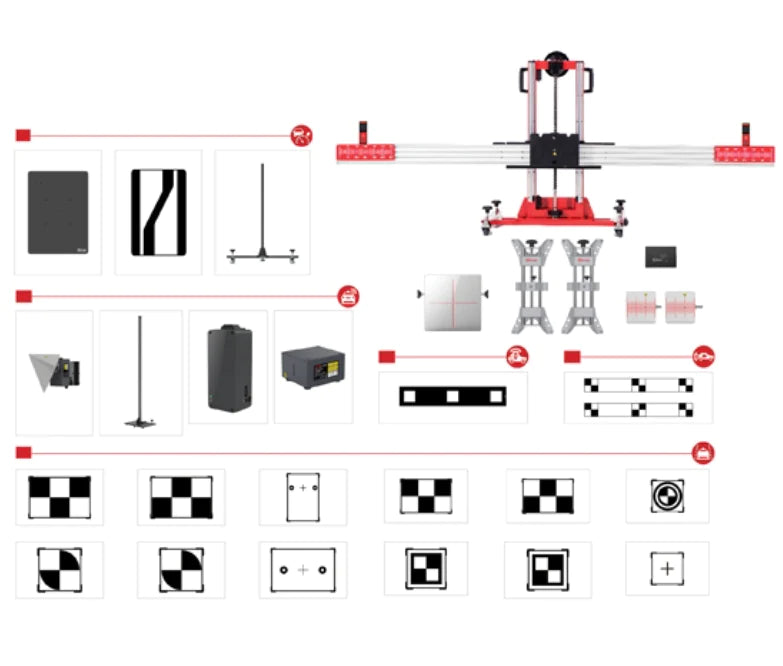

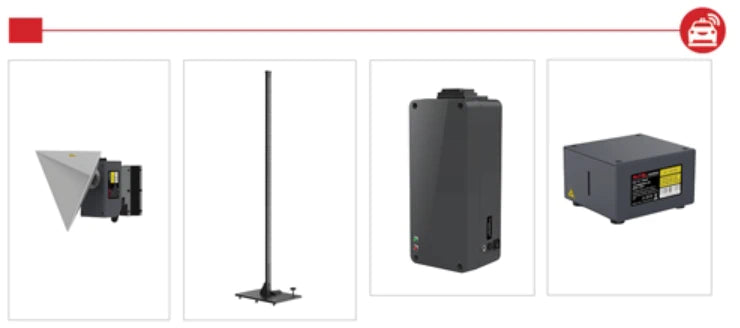

  • Commercial Vehicle All Systems Calibration Package Includes Standard Frame, Targets, and Components to perform calibrations on Light Duty, Class 1-3 Vehicles:
    • LDW - Lane Departure Warning
    • BSD - Blind Spot Detection
    • RCW - Rear Collision Warning
    • ACC - Adaptive Cruise Control
    • AVM - Around View Monitoring
  • Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
  • Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
  • Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

Hardware Features

  • Precise millimeter-level accuracy: crossbar's minor adjustment knob and laser positioning
  • Precise laser on sliding plate to locate radar and front camera
  • Flexible power adjustable lift
  • Flexible portable and easy for storage patter cloth and pattern board
  • Integrated modular frame assembled with accessory tools for calibration
  • Integrated easy to move pattern board holder, pattern cloth, and pattern board

Software Features

  • Smart calibration procedure
  • Smart compatible use with leveling lift adjustment
  • Accurate regular updates of lates OE-level diagnostic and calibration software
  • Accurate correct calibration
  • Intuitive tutorial graphics and step-by-step instructions
  • Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
  • Complete wide vehicle coverage
  • Complete (7) calibration functions fixed and mobile calibrations

Specifications

  • Shipping Dimensions: 60" H x 105" L x 42" W
  • Shipping Weight: 660 lbs.

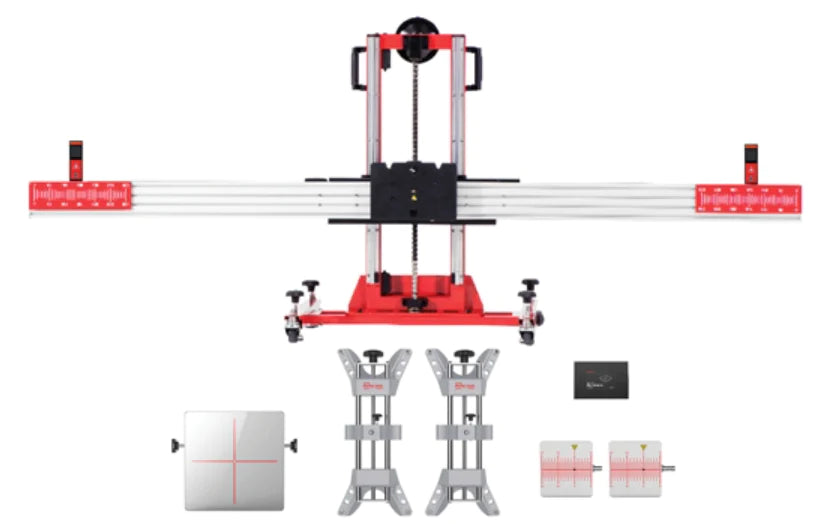

Frame & Pattern Board Specifications

  • Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
  • Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
  • Calibration Frame Weight GW: 152kg (335.1 lb.)
  • Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
  • Crossbar Length: 2510mm (98.82")
  • Measurement Range of Crossbar's Height Min: 350mm (13.78")
  • Measurement Range of Crossbar's Height Max: 950mm (37.40")
  • Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
  • Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
  • Rated Power: 24V, 3A
  • Laser Rated Power: 3V, 25mA
  • Laser Battery Type: AA 2x1.5V
  • Calibration Frame Working Temp: 0? to 50?
  • Calibration Frame Storage Temp: -20? to 60°C
  • Laser Class: Class 2
  • Certification: CE, FCC, RoHS
